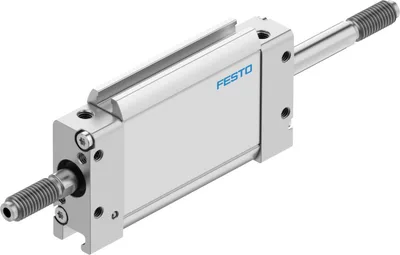

Festo DZF-18- -A-P-A-S20
Flat cylinder. Extremely flat design. Protected against rotation thanks to special piston shape. Ideal for manifold assembly. Wide variety of mounting and attachment options. Piston rod with female or male thread. For position sensing. Sustainable thanks to extended life cycle and easier repairs
Stroke1, 200
Piston diameter18 mm, Equivalent diameter
Piston rod threadM8
Torsional backlash at piston rod +/-1.2
Mounting positionAny
Mode of operationDouble-acting
About This Product
Flat cylinder. Extremely flat design. Protected against rotation thanks to special piston shape. Ideal for manifold assembly. Wide variety of mounting and attachment options. Piston rod with female or male thread. For position sensing. Sustainable thanks to extended life cycle and easier repairs
Festo DZF-18- -A-P-A-S20
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke1, 200
Piston diameter18 mm, Equivalent diameter
Piston rod threadM8
Torsional backlash at piston rod +/-1.2
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
Mode of operationDouble-acting
DesignPiston, Piston rod
Position detectionVia proximity switch
Symbol00991218
VariantsThrough, hollow piston rod
Protection against torque/guideOval piston
Operating pressure0.1, 1
Operating pressure1, 10
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions0.1
Max. torque for protection against torsion0.2
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke123
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke123
Moving mass for 0 mm stroke24
Additional moving mass per 10 mm stroke4
Additional weight per 10 mm stroke13
Basic weight for 0 mm stroke107
Type of mountingWith female thread, With accessories
Pneumatic connectionM5
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material housingAnodised wrought aluminium alloy
Material piston sealNBR
Material piston rodHigh-alloy stainless steel
Accessories 169
