How can I get a price quote for FESTO SME-8-K-LED-230?

You can request a fast quote for FESTO SME-8-K-LED-230 from Yılsa Engineering. Reference part number CEY-937FC7825D04. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SME-8-K-LED-230 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SME-8-K-LED-230 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SME-8-K-LED-230?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

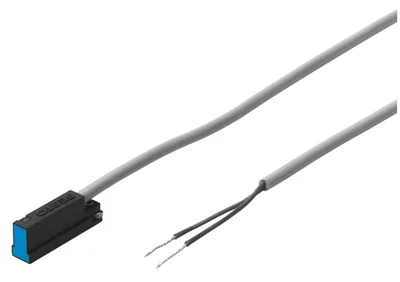

FESTO SME-8-K-LED-230

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTOMFR # SME-8-K-LED-230SKU # CEY-937FC7825D04

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991624

ApprovalCCC, RCM

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTO SME-8-K-LED-230

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991624

ApprovalCCC, RCM

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Note on materialsRoHS compliant

Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-30, 60

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Reproducibility of switching value+/-0.1 mm

Switch-on time2

Switch-off time0.03

Max. switching frequency500

Max. output current120

Max. switching capacity AC10

Max. switching capacity DC10

Voltage drop3.9

Inductive protective circuitAdapted to MZ, MY, ME coils

Min. load current5

Off-state current0

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC3, 230

Operational voltage range DC3, 230

Reverse polarity protectionNo

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores2

Connection outlet orientationIn-line

Cable length2.5

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingClamped in T-slot, Inserted into the slot lengthwise

Tightening torque0.2

Mounting positionAny

Product weight39

Housing colourBlack

Material housingPET, High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 60

Degree of protectionIP68

Insulation voltage2500

Immunity to surge4

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 5

Genuine accessories that can be used with the FESTO SME-8-K-LED-230 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-8	Clip · Mounting accessories
SMM-8	Positioning element · Mounting accessories
NECB-S-M12G4-C2	Plug · Electrical accessories
ASLR-L-423	Inscription label · General accessories
NEAU-LH-2	Inscription label holder · General accessories
