How can I get a price quote for Festo SME-8M-...-?

You can request a fast quote for Festo SME-8M-...- from Yılsa Engineering. Reference part number YLS1MKUE468CND2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SME-8M-...- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SME-8M-...- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SME-8M-...-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

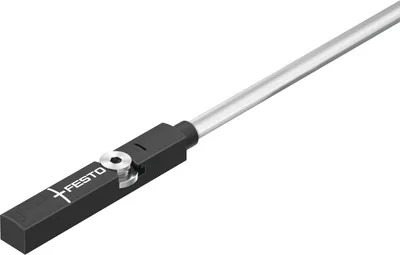

Festo SME-8M-...-

Proximity sensor. Measuring principle: magnetic reed. Individually configurable or pre-assembled. Inserted in the slot from above, flush with the cylinder profile. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FestoMFR # SME-8M-...-SKU # YLS1MKUE468CND2

ApprovalRCM, c UL us - Listed (Oil)

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Measuring principleMagnetic reed

Ambient temperature-40, 70

Switching outputContacting, bipolar

Have questions?Chat on WhatsApp

About This Product

Festo SME-8M-...-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00991619, 00991620, 00991621, 00991622, 00991624, 00991989, 00995366

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Measuring principleMagnetic reed

Ambient temperature-40, 70

Switching outputContacting, bipolar

Switching element functionN/C contact, N/O contact

Max. output current80, 500

Max. output current using mounting kits80

Max. switching capacity AC2.4, 10

Max. switching capacity DC2.4, 10

Max. switching capacity DC using mounting kits2.4

Max. switching capacity AC using mounting kits2.4

Voltage drop1.17, 4.8

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC5, 30

Operational voltage range DC5, 30

Reverse polarity protectionNo

Electrical connection 1, connection typeCable, Cable with plug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101, M8x1, A-coded, to EN 61076-2-104, Open end

Electrical connection 1, number of connections/cores2

Electrical connection 1, type of mountingRotatable, Not rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock, Compatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00992826, 00995573, 00997357

Connection outlet orientationIn-line

Material electrical contactGold-plated copper alloy

Material connector housingTPE-U(PU)

Material screw-type lockBrass, nickel-plated

Test conditions cableBending strength: to Festo standard, Test conditions on request, Energy chain: > 5 million cycles, bending radius 75 mm

Cable length0.2, 10

Cable characteristicStandard/suitable for energy chains

Material cable sheathTPE-U(PUR)

Type of mountingScrew-clamped, Insertable in the slot from above

Product weight8.9, 87.1

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 19

Genuine accessories that can be used with the Festo SME-8M-...- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-8	Clip · Mounting accessories
SMM-8	Positioning element · Mounting accessories
NECU-S-M8G3-HX	Plug · Electrical accessories
NECU-S-M12G3-HX	Plug · Electrical accessories
SAMH-S-N8-L-MK	Mounting kit · Mounting accessories
SAMH-S-N8-L-SC	Covering · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEAU-LH-2	Inscription label holder · General accessories
