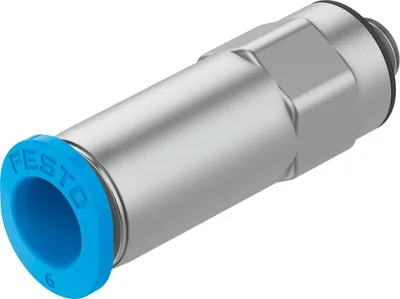

FESTO QSMK-M5-6

Push-in fitting, self-sealing. Standard series. Self-sealing push-in fitting blocks the air flow after the tubing is disconnected. PBT and nickel-plated brass. Operating medium: compressed air, vacuum. Straight shape, L-shape, push-in bulkhead connector

FESTOMFR # QSMK-M5-6SKU # CEY-937FC78257D9

SizeStandard

Nominal size1.7

Tubing insertion depth13.7

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

FESTO QSMK-M5-6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size1.7

Approved tubing typePAN-, PAN-MF-, PAN-R-, PAN-V0-, PEN-, PFAN-, PLN-, PTFEN-, PUN-, PUN-CM-, PUN-DUO-, PUN-H-, PUN-H-DUO-, PUN-S-, PUN-S-DUO-, PUN-V0-

Tubing insertion depth13.7

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 80

Nominal torque1.2

Tolerance for nominal tightening torque±20%

Product weight12

Type of mountingExternal hex SW10

Pneumatic connection, port 1Male thread M5

Pneumatic connection, port 2For tubing outside diameter of 6 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingBrass, nickel-plated

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 82

Genuine accessories that can be used with the FESTO QSMK-M5-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PM-4	Plastic-coated metal tube · Connection accessories
PUN-6X1-SI	Plastic tubing · Tubing
PAN-6X1-SI	Plastic tubing · Tubing
PUN-6X1-DUO-SI	DUO tubing · Tubing
QSO	Release tool · General accessories
PUN-6X1-BL	Plastic tubing · Tubing
PUN-6X1-SW	Plastic tubing · Tubing
PUN-6X1-DUO-BS	DUO tubing · Tubing
PUN-6X1-RT	Plastic tubing · Tubing
PUN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-GN	Plastic tubing · Tubing
PUN-H-6X1-NT	Plastic tubing · Tubing
PUN-H-6X1-BL	Plastic tubing · Tubing
PUN-H-6X1-SW	Plastic tubing · Tubing
PUN-6X1-S-1-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-2-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-6-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-1-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-2-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-6-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-SI-500	Plastic tubing · Tubing
PUN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SW	Plastic tubing · Tubing
PEN-6X1-NT	Plastic tubing · Tubing
PAN-6X1-NT	Plastic tubing · Tubing
PEN-6X1-SW-500	Plastic tubing · Tubing
PEN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SI-500	Plastic tubing · Tubing
PEN-6X1-BL	Plastic tubing · Tubing
PEN-6X1-SI	Plastic tubing · Tubing
PEN-6X1-GN	Plastic tubing · Tubing
PEN-6X1-RT	Plastic tubing · Tubing
PEN-6X1-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PAN-6X1-SI-500	Plastic tubing · Tubing
PAN-6X1-BL-500	Plastic tubing · Tubing
PAN-6X1-SW-500	Plastic tubing · Tubing
PAN-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SW	Plastic tubing · Tubing
PAN-6X1-GN	Plastic tubing · Tubing
PAN-6X1-RT	Plastic tubing · Tubing
PAN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-SW-500	Plastic tubing · Tubing
PUN-H-6X1-SW-500	Plastic tubing · Tubing
PUN-H-6X1-BL-500	Plastic tubing · Tubing
PUN-H-6X1-NT-500	Plastic tubing · Tubing
PUN-H-6X1-SI-500	Plastic tubing · Tubing
PUN-H-6X1-SI	Plastic tubing · Tubing
PUN-H-6X1-RT	Plastic tubing · Tubing
PUN-H-6X1-GN	Plastic tubing · Tubing
PUN-H-6X1-GE	Plastic tubing · Tubing
PUN-H-6X1-TBL	Plastic tubing · Tubing
PUN-H-6X1-TBL-500	Plastic tubing · Tubing
PUN-H-6X1-TSW	Plastic tubing · Tubing
PUN-H-6X1-TSW-500	Plastic tubing · Tubing
PUN-H-6X1-TRT	Plastic tubing · Tubing
PUN-H-6X1-TRT-500	Plastic tubing · Tubing
PUN-H-6X1-TGN	Plastic tubing · Tubing
PUN-H-6X1-TGN-500	Plastic tubing · Tubing
PUN-H-6X1-TGE	Plastic tubing · Tubing
PUN-H-6X1-TGE-500	Plastic tubing · Tubing
PTFEN-6X1-NT-100	Plastic tubing · Tubing
PTFEN-6X1-NT-500	Plastic tubing · Tubing
PUN-H-F-6X1-RT	Plastic tubing · Tubing
PUN-H-F-6X1-BL	Plastic tubing · Tubing
PUN-H-F-6X1-TBL	Plastic tubing · Tubing
PUN-H-F-6X1-GN	Plastic tubing · Tubing
PUN-H-F-6X1-GE	Plastic tubing · Tubing
PUN-H-F-6X1-SW	Plastic tubing · Tubing
PUN-H-F-6X1-NT	Plastic tubing · Tubing
PUN-H-SF-6X1,25-SW	Plastic tubing · Tubing
PUN-H-SF-6X1,25-BL	Plastic tubing · Tubing
PUN-H-6X1-RT-25	Plastic tubing · Tubing
PUN-H-6X1-BL-25	Plastic tubing · Tubing
PUN-H-6X1-SW-25	Plastic tubing · Tubing
PUN-H-6X1-TBL-25	Plastic tubing · Tubing
