How can I get a price quote for FESTO GRLA-M5-QS-3-RS-D?

You can request a fast quote for FESTO GRLA-M5-QS-3-RS-D from Yılsa Engineering. Reference part number CEY-937FC7821553. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO GRLA-M5-QS-3-RS-D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO GRLA-M5-QS-3-RS-D genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO GRLA-M5-QS-3-RS-D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

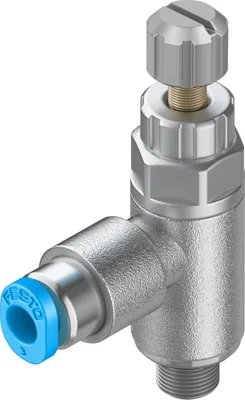

FESTO GRLA-M5-QS-3-RS-D

One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

FESTOMFR # GRLA-M5-QS-3-RS-DSKU # CEY-937FC7821553

Pneumatic connection, port 1QS-3

Pneumatic connection, port 2M5

Adjustment componentKnurled screw

Type of mountingScrew-in

Operating pressure0.2, 10

Ambient temperature-10, 60

Have questions?Chat on WhatsApp

About This Product

FESTO GRLA-M5-QS-3-RS-D

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionExhaust air one-way flow control function

Pneumatic connection, port 1QS-3

Pneumatic connection, port 2M5

Adjustment componentKnurled screw

Type of mountingScrew-in

Standard nominal flow rate in flow control direction100

Standard nominal flow rate in blocked direction60, 100

Operating pressure0.2, 10

Ambient temperature-10, 60

Maritime classificationSee certificate

Mounting positionAny

Symbol00991452

Operating pressure complete temperature range0.2, 10

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)145

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)150, 170

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Media temperature-10, 60

Nominal torque0.8

Product weight14

Material screwed plugBrass

Note on materialsRoHS compliant

Material sealsNBR

Material release ringPOM

Material adjusting screwHigh-alloy stainless steel

Material swivel fittingDie-cast zinc, Chromated

Accessories 21

Genuine accessories that can be used with the FESTO GRLA-M5-QS-3-RS-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-3X0,5-SI	Plastic tubing · Tubing
PUN-3X0,5-BL	Plastic tubing · Tubing
PUN-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-RT	Plastic tubing · Tubing
PUN-3X0,5-GE	Plastic tubing · Tubing
PUN-3X0,5-GN	Plastic tubing · Tubing
PUN-3X0,5-SI-500	Plastic tubing · Tubing
PUN-3X0,5-BL-500	Plastic tubing · Tubing
PUN-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-BL-500	Plastic tubing · Tubing
PUN-H-3X0,5-NT-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI	Plastic tubing · Tubing
PUN-H-3X0,5-RT	Plastic tubing · Tubing
PUN-H-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-GE	Plastic tubing · Tubing
PFAN-3X0,5-NT	Plastic tubing · Tubing
