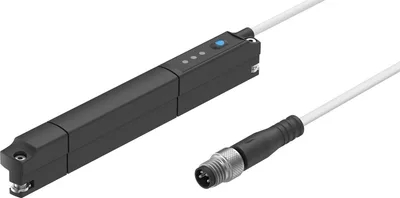

Festo SDAT-MHS-M100-1L-SV-E-0.3-M8

Position transmitter. Measuring principle: magnetic Hall. Sensing range 50, 80, 100, 125, 160 mm. Analogue output 0 ... 10 V or 4 ... 20 mA. Programmable IO-Link®/switching output. Insertable in the slot from above, screw-clamped. LED status indicator. Cable length 0.3 m. Suitable for T-slot

FestoMFR # SDAT-MHS-M100-1L-SV-E-0.3-M8SKU # YLSFKNSDNXOGTIW

DesignFor T-slot

Symbol00997376

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Festo SDAT-MHS-M100-1L-SV-E-0.3-M8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Symbol00997376

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Measuring principleMagnetic Hall

Sensing range0, 100000

Ambient temperature-25, 70

Typical sampling interval1

Max. travel speed3

Displacement resolution0.05

Repetition accuracy0.1

Switching outputPNP

Switching element functionNC or NO, switchable

Switch-on time2

Switch-off time2

Max. switching frequency1000

Max. output current100

Max. switching capacity DC2.7

Voltage drop2.5

Analogue output0 - 10 V

Sensitivity0.09

Typical linearity error±0.25 mm

Min. load resistance voltage output20

Short circuit current ratingYes

Overload protectionAvailable

ProtocolI-Port, IO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN12 bit PDV (measured position value), 4 bit BDC (position monitoring)

IO-Link, Min. cycle time1 ms

Operational voltage range DC15, 30

Residual ripple10%

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00991171

Connection outlet orientationIn-line

Material electrical contactCopper alloy, Gold-plated

Test conditions cableBending strength: to Festo standard, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length0.3

Cable characteristicSuitable for energy chains/robot applications

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingScrew-clamped, Insertable in the slot from above

Mounting positionAny

Product weight26

Material housingPolyester, High-alloy stainless steel

Material union nutNickel-plated brass

Material foilPolyester

Ready status indicationGreen LED

Switching status indicationYellow LED

Status indicationLED red

Setting optionsIO-Link®, Key

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Accessories 7

Genuine accessories that can be used with the Festo SDAT-MHS-M100-1L-SV-E-0.3-M8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G4-U-2.5-N-M8G4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-M8G4	Connecting cable · Connecting cables
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-10-N-LE4	Connecting cable · Connecting cables
