How can I get a price quote for Festo SDBT-MS-20NL-ZN-E-5-LE-EX6?

You can request a fast quote for Festo SDBT-MS-20NL-ZN-E-5-LE-EX6 from Yılsa Engineering. Reference part number YLSVDZYQK2QJTTE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SDBT-MS-20NL-ZN-E-5-LE-EX6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SDBT-MS-20NL-ZN-E-5-LE-EX6 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SDBT-MS-20NL-ZN-E-5-LE-EX6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

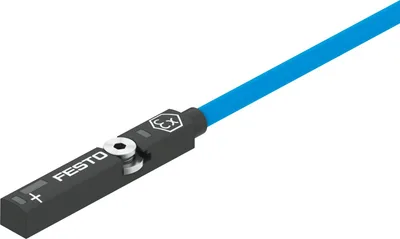

Festo SDBT-MS-20NL-ZN-E-5-LE-EX6

Proximity sensor. Measuring principle: magneto-resistive. To EU Explosion Protection Directive (ATEX). Insertable in the slot from above, screw-clamped. LED switching status indication. Cable length 2.5 … 20 m

FestoMFR # SDBT-MS-20NL-ZN-E-5-LE-EX6SKU # YLSVDZYQK2QJTTE

DesignFor T-slot

Based on standardEN 60947-5-6

Symbol00991433

ATEX category gasII 1G

ATEX category dustII 1D

Max. input voltage Ui28 V

Have questions?Chat on WhatsApp

About This Product

Festo SDBT-MS-20NL-ZN-E-5-LE-EX6

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Based on standardEN 60947-5-6

Symbol00991433

ApprovalRCM, c UL us - Listed (Oil), c UL us - listed (HazLoc)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 0 (ATEX), Zone 0 (BR), Zone 0 (CA), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (KR), Zone 0 (TW), Zone 0 (UKEX), Zone 0 (US), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (BR), Zone 20 (CA), Z

ATEX category gasII 1G

Explosion ignition protection type for gasEx ia IIC T4 ...T6 Ga X

ATEX category dustII 1D

Explosion ignition protection type for dustEx ia IIIC T135°C Da, Zone 20, AEx ia IIIC T135 °C Da

Explosion protection certification outside the EUEPL Da (BR), EPL Da (CA), EPL Da (CN), EPL Da (GB), EPL Da (IEC-Ex), EPL Da (KR), EPL Da (TW), EPL Da (US), EPL Ga (BR), EPL Ga (CA), EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX), EPL Ga (KR), EPL Ga (TW

Explosion ambient temperatureT6, with fixed cable installation: -40°C <= Ta <= +45°C, T6: -20°C <= Ta <= +45°C

Max. input voltage Ui28 V

Max. input current Ii0.25 A

Max. input power PiT4: 350 mW, T6: 72 mW

Effective internal inductivity Li30 µH

Effective internal capacitance Ci79 nF

Certificate issuing authority2020322315000196, 21-AV4BO-0130X, 21-AV4BO-0131X, CSAE 22UKEX1322X, DNV 17.0027 X, IECEx PTZ 18.0008X, ML091200700NZ0, PTZ 16 ATEX 0010 X, UL E232949, UL E539825

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Measuring principleMagneto-resistive

Ambient temperature-40, 85

Repetition accuracy0.2

Switching outputNAMUR

Switching element functionNAMUR

Switch-on time1

Switch-off time1

Max. switching frequency330

Off-state current0.4, 1

Rated operational voltage DC8.2

Operational voltage range DC7.5, 18

Residual ripple10%

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores2

Connection outlet orientationIn-line

Test conditions cableBending strength: to Festo standard, Test conditions on request

Cable length5

Cable characteristicSuitable for energy chains, Suitable for robot applications

Cable sheath colourBlue

Material cable sheathTPE-U(PUR)

Material insulating sheathPP

Wire endsWire ferrule

Type of mountingScrew-clamped, Insertable in the slot from above

Tightening torque0.1, 0.6

Max. tightening torque0.6

Mounting positionAny

Product weight53

Housing colourBlack

Material housingReinforced PA, High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-20, 85

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 4

Genuine accessories that can be used with the Festo SDBT-MS-20NL-ZN-E-5-LE-EX6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-8	Clip · Mounting accessories
ASLR-L-423	Inscription label · General accessories
NECU-S-M8G3-HX	Plug · Electrical accessories
NECU-S-M12G3-HX	Plug · Electrical accessories
