How can I get a price quote for FESTO QSML-M5-3?

You can request a fast quote for FESTO QSML-M5-3 from Yılsa Engineering. Reference part number CEY-937FC78257B5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO QSML-M5-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO QSML-M5-3 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO QSML-M5-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

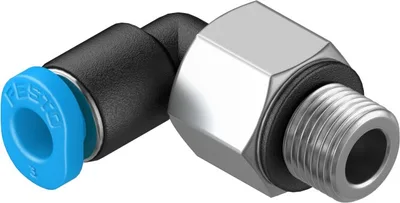

FESTO QSML-M5-3

Push-in L-fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QSML-M5-3SKU # CEY-937FC78257B5

SizeMini

Nominal size1.5

Tubing insertion depth9.5

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignL-shape

Have questions?Chat on WhatsApp

About This Product

FESTO QSML-M5-3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMini

Nominal size1.5

Tubing insertion depth9.5

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignL-shape

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 80

Nominal torque1.2

Tolerance for nominal tightening torque±20%

Product weight2.8

Type of mountingExternal hexagon, size 8 mm

Pneumatic connection, port 1Male thread M5

Pneumatic connection, port 2For tubing outer diameter of 3 mm

Colour of release ringBlue

Material screwed plugNickel-plated brass

Note on materialsRoHS compliant

Material housingPBT

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 25

Genuine accessories that can be used with the FESTO QSML-M5-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSO	Release tool · General accessories
PUN-3X0,5-SI	Plastic tubing · Tubing
PUN-3X0,5-BL	Plastic tubing · Tubing
PUN-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-RT	Plastic tubing · Tubing
PUN-3X0,5-GE	Plastic tubing · Tubing
PUN-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-NT	Plastic tubing · Tubing
PUN-H-3X0,5-BL	Plastic tubing · Tubing
PUN-H-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-SI-500	Plastic tubing · Tubing
PUN-3X0,5-BL-500	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PUN-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-BL-500	Plastic tubing · Tubing
PUN-H-3X0,5-NT-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI	Plastic tubing · Tubing
PUN-H-3X0,5-RT	Plastic tubing · Tubing
PUN-H-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-GE	Plastic tubing · Tubing
