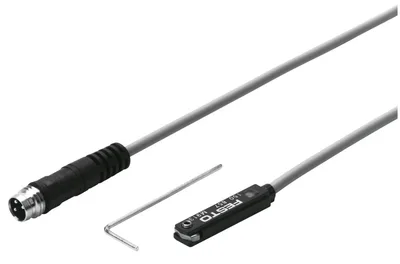

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO SME-8-S-LED-24

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTOMFR # SME-8-S-LED-24SKU # CEY-937FC7825D58

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991148

ApprovalRCM

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTO SME-8-S-LED-24

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991148

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-40, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Reproducibility of switching value+/-0.1 mm

Switch-on time0.5

Switch-off time0.03

Max. switching frequency800

Max. output current500

Max. switching capacity AC10

Max. switching capacity DC10

Inductive protective circuitAdapted to MZ, MY, ME coils

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC12, 30

Operational voltage range DC12, 30

Reverse polarity protectionNo

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991155

Connection outlet orientationIn-line

Material electrical contactBrass, nickel-plated

Material connector housingTPE-U(PU)

Cable length0.3

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingClamped in T-slot, Inserted into the slot lengthwise

Tightening torque0.2

Mounting positionAny

Product weight8

Housing colourBlack

Material housingMakrolon®, PET, High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

Insulation voltage50

Immunity to surge0.8

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 14

Genuine accessories that can be used with the FESTO SME-8-S-LED-24 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMM-8	Positioning element · Mounting accessories
NEDY-L2R1-V1-M8G3-U-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SMBK-8	Clip · Mounting accessories
NEDY-L2R1-V1-M8G3-U-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M8G4-5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEAU-LH-2	Inscription label holder · General accessories
