How can I get a price quote for FESTO SME-8-ZS-KL-LED-24?

You can request a fast quote for FESTO SME-8-ZS-KL-LED-24 from Yılsa Engineering. Reference part number CEY-937FC7823A1D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SME-8-ZS-KL-LED-24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SME-8-ZS-KL-LED-24 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SME-8-ZS-KL-LED-24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

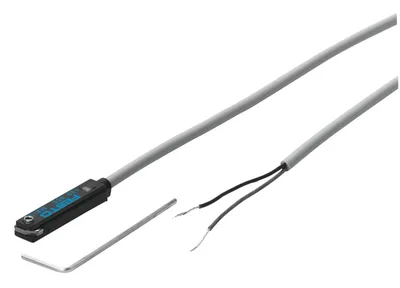

FESTO SME-8-ZS-KL-LED-24

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTOMFR # SME-8-ZS-KL-LED-24SKU # CEY-937FC7823A1D

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991144

ApprovalRCM

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m

FESTO SME-8-ZS-KL-LED-24

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Conforms to standardEN 60947-5-2

Symbol00991144

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-40, 60

Repetition accuracy0.2

Switching outputContacting, bipolar, Without LED function

Switching element functionN/O contact

Switch-on time0.5

Switch-off time0.03

Max. switching frequency800

Max. output current80

Max. switching capacity DC2.16

Voltage drop3.5

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range DC12, 27

Reverse polarity protectionNo

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores2

Connection outlet orientationIn-line

Cable length2.5

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingClamped in T-slot, Inserted into the slot lengthwise

Tightening torque0.2

Mounting positionAny

Product weight27.9

Housing colourBlack

Material housingMakrolon®, PET, High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 60

Degree of protectionIP67

Insulation voltage50

Immunity to surge0.8

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 6

Genuine accessories that can be used with the FESTO SME-8-ZS-KL-LED-24 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-8	Clip · Mounting accessories
SMM-8	Positioning element · Mounting accessories
NECU-S-M8G3-HX	Plug · Electrical accessories
NECU-S-M12G3-HX	Plug · Electrical accessories
ASLR-L-423	Inscription label · General accessories
NEAU-LH-2	Inscription label holder · General accessories
