How can I get a price quote for Festo VFOE-LE-T-M5-Q4?

You can request a fast quote for Festo VFOE-LE-T-M5-Q4 from Yılsa Engineering. Reference part number YLSZRHS6UV3RATR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VFOE-LE-T-M5-Q4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VFOE-LE-T-M5-Q4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VFOE-LE-T-M5-Q4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

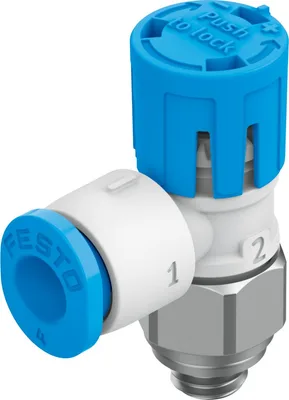

Festo VFOE-LE-T-M5-Q4

One-way flow control valve. Low-cost solution for standard applications. Simple and reliable adjustment of pneumatic cylinder speed. Extremely easy assembly. Fast commissioning. Compact dimensions. Sustainable in production thanks to the use of alternative materials

FestoMFR # VFOE-LE-T-M5-Q4SKU # YLSZRHS6UV3RATR

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2M5

Type of actuationManual

Adjustment componentRotary knob with latch

Type of mountingScrew-in

Ambient temperature-10, 60

Have questions?Chat on WhatsApp

About This Product

Festo VFOE-LE-T-M5-Q4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionExhaust air one-way flow control function

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2M5

Type of actuationManual

Adjustment componentRotary knob with latch

Type of mountingScrew-in

Standard nominal flow rate in flow control direction90

Standard nominal flow rate in blocked direction50, 90

Ambient temperature-10, 60

Material housingPBT

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Mounting positionAny

Symbol00991452

Width across flats9

Rotatability360°/no continuous swivelling permissible

Operating pressure complete temperature range0.02, 1

Operating pressure complete temperature range0.2, 10

Operating pressure complete temperature range2.9, 145

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)150

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)130, 160

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Media temperature-10, 60

Max. tightening torque2.4

Nominal torque2

Tolerance for nominal tightening torque±20%

Product weight3.3

Note on materialsRoHS compliant

Material coverPBT

Material dynamic sealsHNBR

Material threaded boltGalvanised steel

Material release ringPBT

Material static sealsNBR

Accessories 81

Genuine accessories that can be used with the Festo VFOE-LE-T-M5-Q4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-SF-4X0,85-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-BL	Plastic tubing · Tubing
PUN-H-4X0,75-RT-25	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25	Plastic tubing · Tubing
PUN-H-4X0,75-BL-25	Plastic tubing · Tubing
PUN-H-4X0,75-SW-25	Plastic tubing · Tubing
PUN-H-5/32-BL-150-CB	Plastic tubing · Tubing
PUN-H-5/32-SW-150-CB	Plastic tubing · Tubing
PUN-H-5/32-NT-150-CB	Plastic tubing · Tubing
PUN-H-5/32-BR-150-CB	Plastic tubing · Tubing
PUN-H-5/32-SW-500-HA	Plastic tubing · Tubing
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
