How can I get a price quote for FESTO TCK-M5-PK-3?

You can request a fast quote for FESTO TCK-M5-PK-3 from Yılsa Engineering. Reference part number CEY-937FC7827B46. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO TCK-M5-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO TCK-M5-PK-3 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO TCK-M5-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

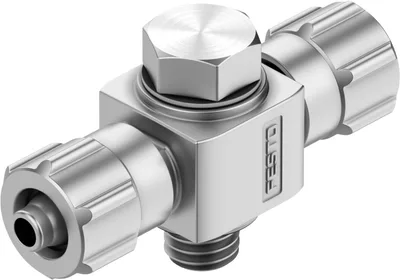

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO TCK-M5-PK-3

T quick connector. Bulkhead quick connector. Sealing cap for plastic tube fittings and barbed fittings. Multiple distributor. Union nut for CK tube fitting. Operating media: compressed air, vacuum, (water). Aluminium, steel, POM or zinc. Straight design, L-shaped, T-shaped

FESTOMFR # TCK-M5-PK-3SKU # CEY-937FC7827B46

Nominal size2

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignT-shape

Size of pack10

Note on operating and pilot mediumLubricated operation possible

Have questions?Chat on WhatsApp

About This Product

FESTO TCK-M5-PK-3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size2

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignT-shape

Size of pack10

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque1.33

Tolerance for nominal tightening torque±20%

Pneumatic connection, port 1Male thread M5

Pneumatic connection, port 2For tubing outside diameter of 4 mm, For barbed fitting I.D. 3 mm with nut

Material union nutWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material sealing ringNBR, High-alloy stainless steel

Material housingDie-cast zinc

Material hollow boltGalvanised steel

Material swivel fittingDie-cast zinc

Accessories 54

Genuine accessories that can be used with the FESTO TCK-M5-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
CV-PK-3-B	Sealing cap · General accessories
PUN-H-4X0,75-BL	Plastic tubing · Tubes
MCK-PK-3	Union nut · General accessories
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-DUO-SI	DUO tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-DUO-BS	DUO tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-S-0,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
