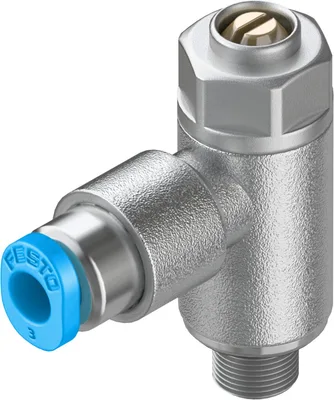

FESTO GRLA-M5-QS-3-D

One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

FESTOMFR # GRLA-M5-QS-3-DSKU # CEY-937FC7821D11

Pneumatic connection, port 1QS-3

Pneumatic connection, port 2M5

Adjustment componentSlotted head screw

Type of mountingScrew-in

Ambient temperature-10, 60

Maritime classificationSee certificate

Have questions?Chat on WhatsApp

About This Product

FESTO GRLA-M5-QS-3-D

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionExhaust air one-way flow control function

Pneumatic connection, port 1QS-3

Pneumatic connection, port 2M5

Adjustment componentSlotted head screw

Type of mountingScrew-in

Standard nominal flow rate in flow control direction100

Standard nominal flow rate in blocked direction60, 100

Ambient temperature-10, 60

Maritime classificationSee certificate

Mounting positionAny

Symbol00991452

Operating pressure complete temperature range0.2, 10

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)145

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)150, 170

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Media temperature-10, 60

Nominal torque0.8

Tolerance for nominal tightening torque±10%

Product weight13

Material screwed plugBrass

Note on materialsRoHS compliant

Material sealsNBR

Material release ringPOM

Material adjusting screwBrass

Material swivel fittingDie-cast zinc, Chromated

Accessories 21

Genuine accessories that can be used with the FESTO GRLA-M5-QS-3-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
PUN-3X0,5-SI	Plastic tubing · Tubing
PUN-3X0,5-BL	Plastic tubing · Tubing
PUN-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-RT	Plastic tubing · Tubing
PUN-3X0,5-GE	Plastic tubing · Tubing
PUN-3X0,5-GN	Plastic tubing · Tubing
PUN-3X0,5-SI-500	Plastic tubing · Tubing
PUN-3X0,5-BL-500	Plastic tubing · Tubing
PUN-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-BL-500	Plastic tubing · Tubing
PUN-H-3X0,5-NT-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI	Plastic tubing · Tubing
PUN-H-3X0,5-RT	Plastic tubing · Tubing
PUN-H-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-GE	Plastic tubing · Tubing
PFAN-3X0,5-NT	Plastic tubing · Tubing
