How can I get a price quote for FESTO SMT-8-SL-PS-LED-24-B?

You can request a fast quote for FESTO SMT-8-SL-PS-LED-24-B from Yılsa Engineering. Reference part number CEY-937FC781D581. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SMT-8-SL-PS-LED-24-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SMT-8-SL-PS-LED-24-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SMT-8-SL-PS-LED-24-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

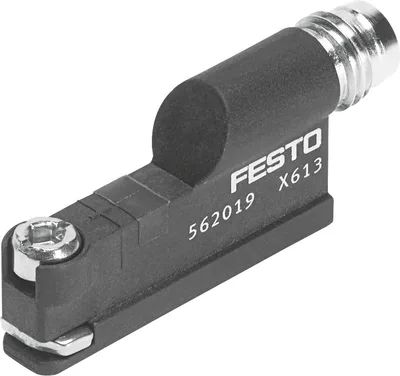

FESTO SMT-8-SL-PS-LED-24-B

Proximity sensor. Measuring principle: magneto-resistive. SMT-8-SL: sturdy thanks to long guides and plug directly on the sensor. Insertable in the slot lengthwise or from above. LED switching status indication. Cable length 0.3, 2.5, 5 m

FESTOMFR # SMT-8-SL-PS-LED-24-BSKU # CEY-937FC781D581

DesignFor T-slot

Based on standardEN 60947-5-2

Symbol00991153

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Have questions?Chat on WhatsApp

About This Product

FESTO SMT-8-SL-PS-LED-24-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Based on standardEN 60947-5-2

Symbol00991153

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagneto-resistive

Ambient temperature-20, 70

Repetition accuracy0.2

Switching outputPNP

Switching element functionN/O contact

Switch-on time1

Switch-off time2, 6

Max. switching frequency140

Max. output current100

Max. switching capacity DC3

Voltage drop2

Inductive protective circuitAdapted to MZ, MY, ME coils

Min. load current0.1

Off-state current0.002

Short circuit current ratingYes

Overload protectionYes

Rated operational voltage DC24

Operational voltage range DC10, 30

Residual ripple10%

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991155

Connection outlet orientationIn-line

Material electrical contactGold-plated brass

Material screw-type lockHigh-alloy stainless steel

Type of mountingScrew-clamped, Inserted into the slot lengthwise

Tightening torque0.12, 0.4

Max. tightening torque0.4

Mounting positionAny

Product weight4.2

Housing colourBlack

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 10

Genuine accessories that can be used with the FESTO SMT-8-SL-PS-LED-24-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMM-8	Positioning element · Mounting accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SMBK-8	Clip · Mounting accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
NEAU-LH-2	Inscription label holder · General accessories
