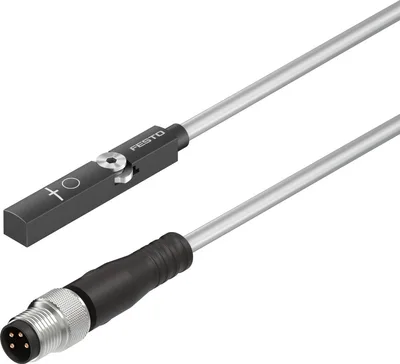

Festo SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8

Position transmitter. Measuring principle: magnetic Hall. Sensing range up to 52 mm. IO-Link®, 2 programmable switching outputs. Inserted in the slot from above. Very compact design makes the unit especially well suited to work with grippers, compact cylinders and any application in a tight space. LED status indicator. Cable length 0.3, 2.5 m. Suitable for T-slot

FestoMFR # SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8SKU # YLSQA7NRDKLPMPX

DesignFor T-slot

Symbol00995894

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Festo SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor T-slot

Symbol00995894

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Measuring principleMagnetic Hall

Sensing range52000

Ambient temperature-40, 80

Typical sampling interval2

Max. travel speed3

Displacement resolution0.02

Repetition accuracy0.2

Switching output2x PNP or 2x NPN, adjustable

Switching element functionNC or NO, switchable

Switch-on time4

Switch-off time4

Max. switching frequency125

Max. switching output voltage DC30

Max. output current50

Max. switching capacity DC1.5

Voltage drop0.5

Typical linearity error±1 mm

Short circuit current ratingYes

Overload protectionAvailable

ProtocolI-Port, IO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesProcess data variable (PDV), Identification, Diagnostics, Teach channel, Switching signal channel (SSC)

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN12 bit PDV (measured position value), 4 bit SSC (Switching Signal)

IO-Link, Min. cycle time2.5 ms

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current12

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00991171

Connection outlet orientationIn-line

Material electrical contactGold-plated copper alloy

Test conditions cableBending strength: to Festo standard, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length0.3

Cable characteristicSuitable for energy chains/robot applications

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingScrew-clamped, Insertable in the slot from above

Mounting positionAny

Product weight9.5

Material housingHigh-alloy stainless steel

Material union nutNickel-plated brass

Switching status indicationYellow LED

Status indicationLED red

Setting optionsIO-Link®, Capacitive pushbutton

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Accessories 3

Genuine accessories that can be used with the Festo SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEAU-LH-2	Inscription label holder · General accessories
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
