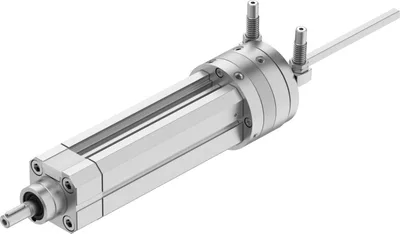

FESTO DSL-20-100-270-CC-A-S20-B
Swivel/linear unit. Rotary and linear motion can be controlled individually or simultaneously. High repetition accuracy. With plain or recirculating ball bearing guide. Through piston rod
Cushioning angle12
Rotation angle adjustment range0, 246
Stroke100
Piston diameter20 mm
Swivel angle0, 246
Mounting positionAny
About This Product
Swivel/linear unit. Rotary and linear motion can be controlled individually or simultaneously. High repetition accuracy. With plain or recirculating ball bearing guide. Through piston rod
FESTO DSL-20-100-270-CC-A-S20-B
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Cushioning angle12
Rotation angle adjustment range0, 246
Stroke100
Piston diameter20 mm
Swivel angle0, 246
CushioningShock absorber at both ends, Elastic cushioning rings/plates at both ends
Mounting positionAny
Fine adjustment-3
Mode of operationDouble-acting
DesignVane
Position detectionVia proximity switch
Symbol00991269
VariantsThrough, hollow piston rod
Protection against torque/guideWith plain-bearing guide
Operating pressure2.5, 8
Max. impact speed0.5
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)1
Rotary angle backlash2
Repetition accuracy0.1
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10, 60
Dynamic load torque0.2
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke120.5
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke159
Theoretical torque at 0.6 MPa (6 bar, 87 psi)2.5
Permissible mass moment of inertia0.0012
Product weight1650
Basic weight for 0 mm stroke1130
Additional weight per 10 mm stroke52
Type of mountingClamped in T-slot, With male thread
Pneumatic connectionM5
Material coverWrought aluminium alloy, anodised
Material sealsTPE-U(PU)
Material housingSmooth-anodised
Material piston rodTempered steel
