How can I get a price quote for Festo SMT-10M-PS-24V-E-0,3-L-M12?

You can request a fast quote for Festo SMT-10M-PS-24V-E-0,3-L-M12 from Yılsa Engineering. Reference part number YLSL1MATKMBGBVB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SMT-10M-PS-24V-E-0,3-L-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SMT-10M-PS-24V-E-0,3-L-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SMT-10M-PS-24V-E-0,3-L-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

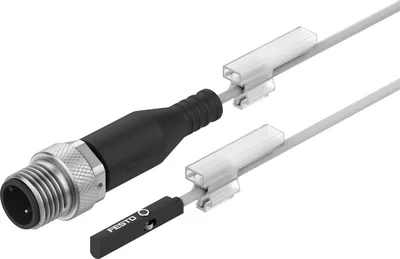

Festo SMT-10M-PS-24V-E-0,3-L-M12

Proximity switch. Measuring principle: magneto-resistive. For universal use. Individually configurable or pre-assembled. Inserted in the slot from above, flush with the cylinder profile. LED switching status indication. Cable length 0.3, 2.5 m

FestoMFR # SMT-10M-PS-24V-E-0,3-L-M12SKU # YLSL1MATKMBGBVB

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991153

ApprovalRCM

Special characteristicsOil-resistant

Note on materialsFree of halogen

Have questions?Chat on WhatsApp

About This Product

Festo SMT-10M-PS-24V-E-0,3-L-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991153

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Special characteristicsOil-resistant

Note on materialsFree of halogen

Measured variablePosition

Measuring principleMagneto-resistive

Ambient temperature-40, 70

Repetition accuracy0.2

Switching outputPNP

Switching element functionN/O contact

Switch-on time1.3

Switch-off time4.2, 7.3

Max. switching frequency130

Max. output current100

Max. output current using mounting kits50

Max. switching capacity DC2.8

Max. switching capacity DC using mounting kits1.5

Voltage drop1.7

Off-state current0.05

Short circuit current ratingYes

Overload protectionYes

Rated operational voltage DC24

Operational voltage range DC5, 30

Residual ripple10%

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingScrew-type lock, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995573

Connection outlet orientationIn-line

Material electrical contactGold-plated brass

Material connector housingTPE-U(PU)

Material screw-type lockBrass, nickel-plated

Test conditions cableBending strength: to Festo standard, Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length0.3

Cable characteristicSuitable for energy chains/robot applications

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Material insulating sheathPP

Type of mountingScrew-clamped, Insertable in the slot from above

Max. tightening torque0.4

Mounting positionAny

Product weight14

Housing colourBlack

Material housingReinforced PA, High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Accessories 1

Genuine accessories that can be used with the Festo SMT-10M-PS-24V-E-0,3-L-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
