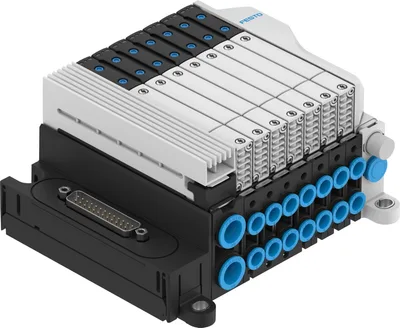

Festo VTUX-A-P-

Valve terminal. Flexible for centralised and decentralised installation. Compact, lightweight yet robust. Modular and cost-effective. High flow rates. Versatile options for creating pressure zones. Sustainable operation thanks to efficient control. Sustainable manufacturing thanks to a compact design and reduced use of materials

FestoMFR # VTUX-A-P-SKU # YLSBVLHRIDIWKE

Mounting method for sub-baseWith through-hole

Grid dimension10.55, 16.05

Type of mountingTie rod

Ambient temperature-5, 50

Storage temperature-20, 70

Nominal altitude of use<= 2000 m NHN

Have questions?Chat on WhatsApp

About This Product

Festo VTUX-A-P-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mounting method for sub-baseWith through-hole

Grid dimension10.55, 16.05

Type of mountingTie rod

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature-5, 50

Storage temperature-20, 70

Nominal altitude of use<= 2000 m NHN

Max. installation height3500

Degree of protectionIP20, IP40, IP65

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 1

Operating pressure-0.1, 0.7

Operating pressure-1, 7

Pilot pressure0.15, 0.7

Pilot pressure1.5, 7

Operating pressure for valve terminal with internal pilot air supply0.15, 0.7

Operating pressure for valve terminal with internal pilot air supply1.5, 7

Operating pressure for valve terminal with internal pilot air supply21.75, 101.5

LABS (PWIS) conformityVDMA24364-C1-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E322346

Suitable for use with foodNSF H1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Valve terminal structureModular and expandable

Max. number of valve positions32

Max. number of pressure zones16

Type of actuationElectrical

Valve function2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 5/2-way, double solenoid, 5/2-way, single solenoid, 5/3-way, closed, 5/3-way valve with holding function, for vacuum switching uni

DesignPiston gate valve

Sealing principleSoft

Type of pilotingPiloted

Valve size15

Pilot air supplyExternal, Internal

Nominal flow rate standardised according to ISO 8778470, 1650

Flow directionReversible with restrictions

Suitability for vacuumYes

Exhaust-air functionCan be throttled

Pneumatic connection, port 1QS-6, QS-8, Silencer, For 15 mm cartridge, Blanking plug

Pneumatic connection, port 2QS-3, QS-4, QS-6, QS-8, QS-5/32, QS-1/8, QS-1/4, QS-5/16, QS-3/8, For 10 mm cartridge, For 12 mm cartridge, For 15 mm cartridge, Blanking plug

Pneumatic connection, port 3QS-6, QS-8, QS-5/16, QS-3/8, For 15 mm cartridge, Silencer

Pneumatic connection, port 4QS-3, QS-4, QS-6, QS-8, QS-5/32, QS-5/16, QS-3/8, Silencer, For 10 mm cartridge, For 12 mm cartridge, For 15 mm cartridge, Blanking plug

Pneumatic connection, port 5QS-6, QS-8, QS-10, QS-12, QS-14, QS-5/16, QS-1/4, QS-3/8, QS-1/2, Silencer, For 15 mm cartridge, Blanking plug

Pilot air port 12/14QS-4, QS-6, QS-8, QS-10, QS-5/16, QS-1/4, For 12 mm cartridge, For 15 mm cartridge

Pilot exhaust port 82/84QS-4, QS-6, QS-8, QS-10, QS-5/16, QS-1/4, Silencer, For 12 mm cartridge, For 15 mm cartridge

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

Accessories 138

Genuine accessories that can be used with the Festo VTUX-A-P- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-S1WA25-K-2.5-N-LE25-S9	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-M12G5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-M12G5	Connecting cable · Connecting cables
NEBV-S1G25-K-5-N-LE25	Connecting cable · Connecting cables
NEBV-S1WA44-K-2.5-N-LE44-S9	Connecting cable · Connecting cables
NEBV-S1G25-K-5-N-LE25-S6	Connecting cable · Connecting cables
NEBV-S1WA25-K-5-N-LE25-S9	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBV-S1WA44-K-5-N-LE44-S9	Connecting cable · Connecting cables
NEBV-S1G25-K-2.5-N-LE25-S6	Connecting cable · Connecting cables
NEBV-S1G25-K-2.5-N-LE25	Connecting cable · Connecting cables
VABX-A-P-EL-E12-MS1T-SHUH-XL	Manifold sub-base · Electrical accessories
NPQX-D-PC15-T14-P10	Cartridge · Push-in fittings
VUVX-BK10-T32H-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-T32CV-A1ZH-F-1T1L	Solenoid valve · Valves
VABX-A-P-VE-BH-VB010L	Manifold sub-base for vacuum · Electrical accessories
VABX-A-P-VE-BH-VB07H	Manifold sub-base for vacuum · Electrical accessories
VABX-A-P-VE-BH-VB07L	Manifold sub-base for vacuum · Electrical accessories
NPQX-D-PC15-Q14-P2	Cartridge · Push-in fittings
NPQX-D-PC15-T12-P2	Cartridge · Push-in fittings
NPQX-D-PC15-Q6-P10	Cartridge · Push-in fittings
NEBV-S1G25-K-10-N-LE25	Connecting cable · Electrical accessories
NEBV-S1G44-K-2.5-N-LE44-S6	Connecting cable · Connecting cables
NEBV-S1G44-K-5-N-LE44-S6	Connecting cable · Connecting cables
NEBV-S1G44-K-10-N-LE44-S6	Connecting cable · Connecting cables
NEBV-S1G25-K-10-N-LE25-S6	Connecting cable · Connecting cables
NEBV-S1WA44-K-10-N-LE44-S9	Connecting cable · Connecting cables
NEBV-S1WA25-K-10-N-LE25-S9	Connecting cable · Connecting cables
VUVX-...T1	Solenoid valve · Valves
VABB-XA-10-T	Cover plate · General accessories
NPQX-D-PC10-Q4-P10	Cartridge · Push-in fittings
NPQX-D-PC10-Q6-P10	Cartridge · Push-in fittings
NPQX-D-PC12-Q4-P10	Cartridge · Push-in fittings
NPQX-D-PC12-Q6-P10	Cartridge · Push-in fittings
NPQX-D-PC12-Q8-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q8-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q10-P10	Cartridge · Push-in fittings
NPQX-D-PC10-T532-P10	Cartridge · Push-in fittings
NPQX-D-PC10-T14-P10	Cartridge · Push-in fittings
NPQX-D-PC10-T18-P10	Cartridge · Push-in fittings
NPQX-D-PC12-T532-P10	Cartridge · Push-in fittings
NPQX-D-PC12-T516-P10	Cartridge · Push-in fittings
NPQX-D-PC12-T14-P10	Cartridge · Push-in fittings
NPQX-D-PC15-T516-P10	Cartridge · Push-in fittings
VUVX-BK10-M52-A1ZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-M52-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-B52-ZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-T32C-A1ZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-T32C-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-T32U-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-P53C-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-P54E-MZH-F-1T1L	Solenoid valve · Valves
VABX-A-P-EL-E12-MS1-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-MS6-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-MS3-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-MS8-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-MF1-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-MC-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-BV-AH-F	Manifold sub-base · Electrical accessories
VABX-A-P-BV-AH-A	Manifold sub-base · Electrical accessories
VABX-A-P-BV-AH-RVFFFF	Manifold sub-base · Electrical accessories
VABX-A-P-BV-AH-RVAAAA	Manifold sub-base · Electrical accessories
VABX-A-P-BV-BH-G	Manifold sub-base · Electrical accessories
VABX-A-P-BV-BH-B	Manifold sub-base · Electrical accessories
VABX-A-P-BV-BH-RVGGGG	Manifold sub-base · Electrical accessories
VABX-A-P-BV-BH-RVBBBB	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-IOS-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-IOL-SHUH-XL	Manifold sub-base · Electrical accessories
VABX-A-P-EL-E12-API-SHUH-XL	Manifold sub-base · Electrical accessories
NPQX-D-PC19-T38-P10	Cartridge · Push-in fittings
VABD-XA-12-P1	Separator · General accessories
VABD-XA-12-P2	Separator · General accessories
VAME-XA-W	Wall mounting · Mounting accessories
AMTX-P-PC12	Silencer · Silencer
VABF-XA-12-M1-C	Exhaust plate · Connection accessories
ASLR-C-XA-TT	Inscription label · General accessories
ASLR-C-XA-TR	Inscription label · General accessories
ASLR-C-XA-TS	Inscription label · General accessories
VAME-XA-S-M4-30	Screws-SET · Connection accessories
VAME-XA-S-M4-45	Screws-SET · Connection accessories
NPQX-P-PC10	Blanking plug · Other connectors
NPQX-P-PC12	Blanking plug · Other connectors
NPQX-P-PC15	Blanking plug · Other connectors
VAME-XA-Z-10	Tie rod · Connection accessories
VAME-XA-Z-12	Tie rod · Connection accessories
VAME-XA-Z-16	Tie rod · Connection accessories
VAME-XA-Z-17	Tie rod · Connection accessories
VAME-XA-Z-19	Tie rod · Connection accessories
VAME-XA-Z-29	Tie rod · Connection accessories
VAME-XA-Z-38	Tie rod · Connection accessories
VAME-XA-Z-42	Tie rod · Connection accessories
VAME-XA-Z-50	Tie rod · Connection accessories
VAME-XA-Z-61	Tie rod · Connection accessories
VAME-XA-Z-84	Tie rod · Connection accessories
VAME-XA-Z-107	Tie rod · Connection accessories
VAME-XA-Z-130	Tie rod · Connection accessories
VAME-XA-Z-150	Tie rod · Connection accessories
VAME-XA-Z-170	Tie rod · Connection accessories
VAME-XA-Z-190	Tie rod · Connection accessories
VAME-XA-H	DIN rail attachment · Mounting accessories
VABX-A-P-BU-12-SHUH-U	Manifold sub-base · Electrical accessories
VABF-XA-12-M2-QX	Plate · Connection accessories
VAMC-XA-CS	Cover cap · General accessories
VAMC-XA-CD	Cover cap · General accessories
OAFA-C-Q4-E-F	Inline filter · General accessories
OAFA-C-Q4-E-E	Inline filter · General accessories
OAFA-C-Q6-E-F	Inline filter · General accessories
OAFA-C-Q6-E-E	Inline filter · General accessories
OAFA-C-Q8-E-F	Inline filter · General accessories
OAFA-C-Q8-E-E	Inline filter · General accessories
VABX-A-P-VE-BH-VB010H	Manifold sub-base for vacuum · Electrical accessories
NPAT-QX-T-V1	Release tool · Mounting accessories
NPQX-D-PC15-Q12-P2	Cartridge · Push-in fittings
VABX-A-P-VP-BH-VH	Manifold sub-base for vacuum · Electrical accessories
VUVX-BK10-P54CV-MZH-F-1T1L	Solenoid valve · Valves
VUVX-BK10-P53CD-A1ZH-F-1T1L	Solenoid valve · Valves
ASCF-RP1-XA-100	Label holder · General accessories
ASCF-RP3-XA-100	Label holder · General accessories
ASCF-P1-XA-1000	Label holder · General accessories
ASCF-P3-XA-1000	Label holder · General accessories
ASCF-RP1-XA-50	Label holder · General accessories
ASCF-RP1-XA-42	Label holder · General accessories
ASCF-RP3-XA-50	Label holder · General accessories
ASCF-RP3-XA-42	Label holder · General accessories
ASCF-RP1-XA-84	Label holder · General accessories
ASCF-RP3-XA-84	Label holder · General accessories
VABB-XA-8E	Sealing cap · General accessories
OAFA-C-Q4-E-C	Inline filter · General accessories
OAFA-C-Q3-E-F	Inline filter · General accessories
OAFA-C-Q3-E-C	Inline filter · General accessories
OAFA-C-Q10-E-C	Inline filter · General accessories
OAFA-C-Q6-E-C	Inline filter · General accessories
OAFA-C-Q8-E-C	Inline filter · General accessories
OAFA-C-Q10-E-F	Inline filter · General accessories
OAFA-C-Q10-E-E	Inline filter · General accessories
OAFA-C-Q3-E-E	Inline filter · General accessories
AMTX-LP-PC15	Silencer · Silencer
