Festo OAFA-C-Q8-E-C

Photo may not represent actual item. Refer to name and product specs for all details.

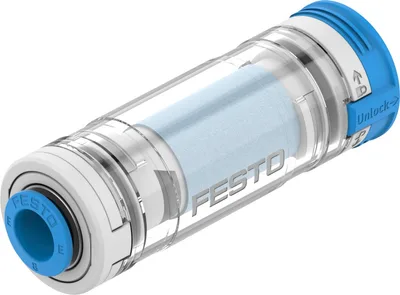

Festo OAFA-C-Q8-E-C

Inline filter. Inline filters for overpressure and vacuum applications. For tubing connections in various sizes. Grade of filtration: optionally 10 or 40 µm. Transparent housing to determine the contamination level. Replaceable filter element. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Optional: Mounting component OAMM

FestoMFR # OAFA-C-Q8-E-CSKU # YLSO7MTYRY2BORO
Nominal size8
Mounting positionAny
Grade of filtration5
Symbol00991483
Operating pressure-0.1, 1
Operating pressure-1, 10
Share
Have questions?Chat on WhatsApp

About This Product

Inline filter. Inline filters for overpressure and vacuum applications. For tubing connections in various sizes. Grade of filtration: optionally 10 or 40 µm. Transparent housing to determine the contamination level. Replaceable filter element. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Optional: Mounting component OAMM

Festo OAFA-C-Q8-E-C

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Nominal size8
Instructions on useThe housing should not be cleaned with polar solvents (such as alcohol).
Mounting positionAny
Grade of filtration5
Symbol00991483
Operating pressure-0.1, 1
Operating pressure-1, 10
Operating pressure-14.5, 145
Operating mediumAir
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature0, 60
Product weight22.3
Type of mountingInline installation
Pneumatic connectionFor tubing O.D. 8 mm
Note on materialsRoHS compliant
Material sealsHNBR
Material filterPackaging unit
Material housingPA
