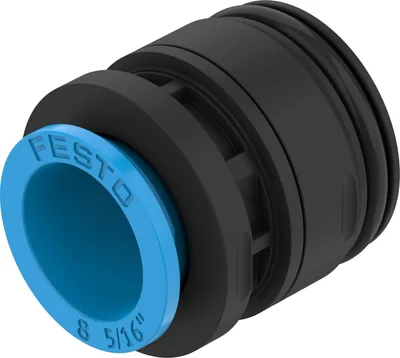

Festo NPQX-D-PC15-Q8-P10
Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape
SizeStandard
Nominal size6
Tubing insertion depth15.2
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
About This Product
Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape
Festo NPQX-D-PC15-Q8-P10
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size6
Tubing insertion depth15.2
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure-0.095, 1
Operating pressure-0.95, 10
Operating pressure-13.775, 145
Operating pressure complete temperature range-0.095, 1
Operating pressure complete temperature range-0.95, 10
Operating pressure complete temperature range-13.775, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 60
Product weight1.9
Type of mountingWith retaining clamp
Pneumatic connection, port 1Cartridge 15 mm
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingReinforced PA
Material release ringPOM
Material o-ringHNBR
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Accessories 117
Genuine accessories that can be used with the Festo NPQX-D-PC15-Q8-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-5/16-NT-500-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-BL-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-SW-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-NT-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-BR-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-SI-500-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-BL-1000-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-SW-1000-HA | Plastic tubing · Tubing | |
| PEN-5/16-SW-150-CB | Plastic tubing · Tubing | |
| PEN-5/16-BL-150-CB | Plastic tubing · Tubing | |
| PLN-5/16-NT-150-CB | Plastic tubing · Tubing | |
| PUN-CM-8-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-SI | DUO tubing · Tubing | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-BS | DUO tubing · Tubing | |
| PAN-V0-8X1-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PLN-8X1,25-NT | Plastic tubing · Tubing | |
| PLN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-DUO | DUO tubing · Tubing | |
| PUN-8X1,25-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-V0-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-WS | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BR | Plastic tubing · Tubing | |
| PAN-V0-8X1-GN | Plastic tubing · Tubing | |
| PAN-V0-8X1-RT | Plastic tubing · Tubing | |
| PAN-V0-8X1-WS | Plastic tubing · Tubing | |
| PAN-V0-8X1-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-R-8X1,5-SI | Heavy-duty tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PAN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PLN | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PLN-8X1,25-BL | Plastic tubing · Tubing | |
| PLN-8X1,25-SI | Plastic tubing · Tubing | |
| PLN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BR-C | Plastic tubing · Tubing | |
| PAN-MF-8X1-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-SW | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-BL | Plastic tubing · Tubing | |
| NPAT-QX-T-V1 | Release tool · Mounting accessories | |
| PUN-H-LC-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-LC-8X1,25-HBL | Plastic tubing · Tubing |
