How can I get a price quote for FESTO NEBV-S1WA44-K-2.5-N-LE44-S9?

You can request a fast quote for FESTO NEBV-S1WA44-K-2.5-N-LE44-S9 from Yılsa Engineering. Reference part number CEY-937FC781BD8E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO NEBV-S1WA44-K-2.5-N-LE44-S9 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO NEBV-S1WA44-K-2.5-N-LE44-S9 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO NEBV-S1WA44-K-2.5-N-LE44-S9?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

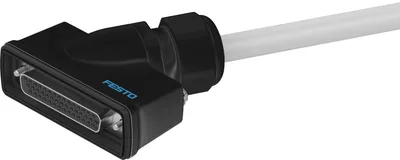

FESTO NEBV-S1WA44-K-2.5-N-LE44-S9

Connecting cable. For solenoid coils form A, form B or form C. For solenoid coils with thread M8x1 or M12x1 A-coded. For solenoid coils ZC or various special connection patterns. Pre-assembled at one or both ends. Cable length 0.1 ... 30 m. With PUR cable. Ambient temperature -25 ... +80 °C

FESTOMFR # NEBV-S1WA44-K-2.5-N-LE44-S9SKU # CEY-937FC781BD8E

Based on standardDIN 47100

Cable designationWithout inscription label holder

Frequency of connection50

Product weight460

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Have questions?Chat on WhatsApp

About This Product

FESTO NEBV-S1WA44-K-2.5-N-LE44-S9

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardDIN 47100

Cable designationWithout inscription label holder

Frequency of connection50

Product weight460

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemSub-D

Electrical connection 1, number of connections/cores44

Electrical connection 1, used connections/cores44

Electrical connection 1, type of mounting2x screw 4-40 UNC

Electrical connection 1, connection pattern00995646

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores44

Electrical connection 2, used connections/cores44

Operational voltage range DC0, 30

Current rating at 40° C0.86

Immunity to surge2.4

Reverse polarity protectionYes

Cable length2.5

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable42

Bending radius, moving cable126

Cable fittingM20x1.5

Cable diameter10.2

Cable diameter tolerance± 0.3 mm

Cable structure44 x 0.14 mm²

Nominal cross section conductor0.14

Wire endsCut off bluntly

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-35, 80

Ambient temperature with moving cable-5, 80

Storage temperature-35, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathPVC

Cable sheath colourGrey

Material housingPA66-GF30

Housing colourBlack

Material screwsSteel

Material sealsNBR

Material electrical contactBronze, Gold-plated

Material insulating sheathPVC
