How can I get a price quote for Festo NPQX-D-PC15-Q14-P2?

You can request a fast quote for Festo NPQX-D-PC15-Q14-P2 from Yılsa Engineering. Reference part number YLSJAFDPJRZHNMI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NPQX-D-PC15-Q14-P2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NPQX-D-PC15-Q14-P2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NPQX-D-PC15-Q14-P2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

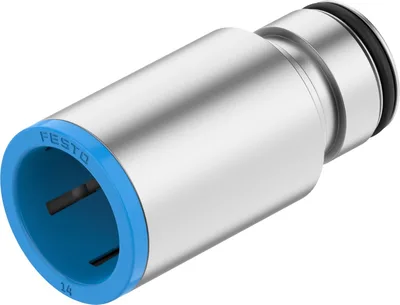

Festo NPQX-D-PC15-Q14-P2

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

FestoMFR # NPQX-D-PC15-Q14-P2SKU # YLSJAFDPJRZHNMI

SizeStandard

Nominal size10

Tubing insertion depth25.4

Type of seal on screwed plugO-ring

Mounting positionAny

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

Festo NPQX-D-PC15-Q14-P2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size10

Tubing insertion depth25.4

Type of seal on screwed plugO-ring

Mounting positionAny

DesignStraight design

Size of pack2

DesignPush-pull principle

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Operating pressure-13.775, 145

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Ambient temperature-5, 60

Product weight25.8

Type of mountingWith retaining clamp

Pneumatic connection, port 1Cartridge 15 mm

Pneumatic connection, port 2For tubing outside diameter of 14 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingHigh-alloy steel

Material release ringReinforced PA

Material o-ringHNBR

Material tubing sealHNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 1

Genuine accessories that can be used with the Festo NPQX-D-PC15-Q14-P2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
