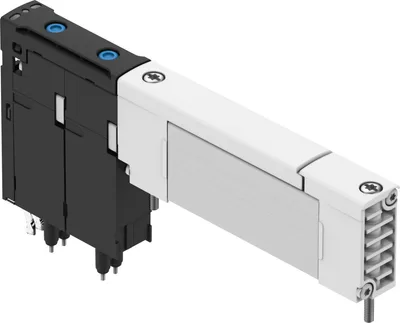

Festo VUVX-BK10-B52-ZH-F-1T1L

Solenoid valve. High flow rate of up to 730 l/min with a width of 10 mm. Low power consumption of the coils. Extensive selection of valve types. Can be used universally on valve terminals VTUX

FestoMFR # VUVX-BK10-B52-ZH-F-1T1LSKU # YLSLPPRFCJWREZI

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

Operating voltage24 V DC

Operating pressure-0.09, 0.7

Operating pressure-0.9, 7

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. High flow rate of up to 730 l/min with a width of 10 mm. Low power consumption of the coils. Extensive selection of valve types. Can be used universally on valve terminals VTUX

Festo VUVX-BK10-B52-ZH-F-1T1L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

Nominal flow rate standardised according to ISO 8778690

Operating voltage24 V DC

Operating pressure-0.09, 0.7

Operating pressure-0.9, 7

DesignPiston slide with sealing ring

Degree of protectionIP65

Width10.35

Nominal size4.2

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible with restrictions

Symbol00997521

lapUnderlap

Signal status displayYes

Pilot pressure0.15, 0.7

Pilot pressure1.5, 7

Suitability for vacuumYes

b value0.36

C value2.76

Nominal flow rate standardised to ISO 8778 exhaust 2-3700

Max. switching frequency5

Switching time reversal9

Duty cycle100%

Max. positive test pulse with 0 signal1400

Max. negative test pulse with 1 signal800

Characteristic coil data24 V DC: 0.35 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 70

Suitable for use with foodNSF H1

Media temperature-5, 50

Relative air humidity5 - 95%

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.345

Product weight51.9
