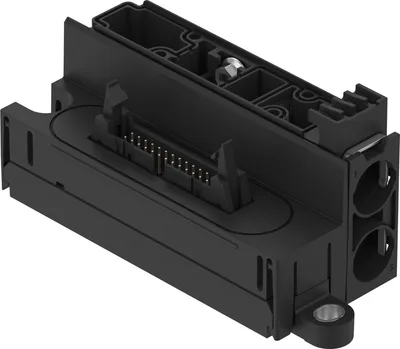

Festo VABX-A-P-EL-E12-MF1-SHUH-XL

Manifold sub-base

FestoMFR # VABX-A-P-EL-E12-MF1-SHUH-XLSKU # YLSOVQKATCG4VIQ

Size1, 2

Position of connectionOn the side

Valve terminal structureValve sizes can be mixed

Max. number of valve coils24

Compatible withValve terminal VTUX-A-P

Dimensions (W x L x H)45.6 mm x 117.4 mm x 53.9 mm

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-P-EL-E12-MF1-SHUH-XL (Manifold sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-P-EL-E12-MF1-SHUH-XL — price, stock availability and technical specifications.

Festo VABX-A-P-EL-E12-MF1-SHUH-XL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size1, 2

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Position of connectionOn the side

Valve terminal structureValve sizes can be mixed

Max. number of valve coils24

Compatible withValve terminal VTUX-A-P

Dimensions (W x L x H)45.6 mm x 117.4 mm x 53.9 mm

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal operating voltage DC of load24

Pollution degree2

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 70

Relative air humidity5 - 95%

Degree of protectionIP20

Ambient temperature-20, 50

Max. tightening torque wall mounting6

Product weight124.1

Electrical controlMulti-pin

Max. cable length30 M

Electrical connection 1, connector systemTerminal strip

Electrical connection 1, number of connections/cores26

Electrical connection 1, connection pattern00995702

Cable outletStraight

Mounting method for sub-baseWith through-hole

Type of mountingVia through-hole for M5 screw

Pneumatic connection, port 1For 15 mm cartridge

Pneumatic connection, port 5For 15 mm cartridge

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Material coverReinforced PA

Material sealsNBR

Material sleeveHigh-alloy stainless steel

Material clipHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Accessories 11

Genuine accessories that can be used with the Festo VABX-A-P-EL-E12-MF1-SHUH-XL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQX-D-PC15-T14-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q14-P2	Cartridge · Push-in fittings
NPQX-D-PC15-T12-P2	Cartridge · Push-in fittings
NPQX-D-PC15-Q6-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q8-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q10-P10	Cartridge · Push-in fittings
NPQX-D-PC15-T516-P10	Cartridge · Push-in fittings
VABF-XA-12-M1-C	Exhaust plate · Connection accessories
NPQX-P-PC15	Blanking plug · Push-in fittings
VABF-XA-12-M2-QX	Plate · Connection accessories
NPQX-D-PC15-Q12-P2	Cartridge · Push-in fittings
