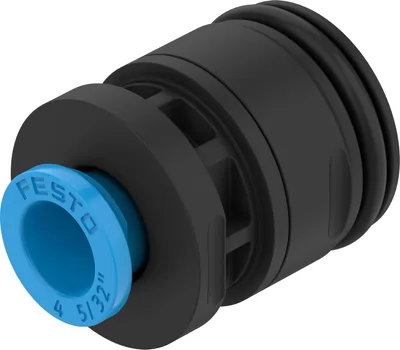

Festo NPQX-D-PC12-Q4-P10

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPQX-D-PC12-Q4-P10

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

FestoMFR # NPQX-D-PC12-Q4-P10SKU # YLSZYQRYKFJBDKP
SizeStandard
Nominal size2.6
Tubing insertion depth15
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
Share
Have questions?Chat on WhatsApp

About This Product

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

Festo NPQX-D-PC12-Q4-P10

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size2.6
Tubing insertion depth15
Type of seal on screwed plugO-ring
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure-0.095, 1
Operating pressure-0.95, 10
Operating pressure-13.775, 145
Operating pressure complete temperature range-0.095, 1
Operating pressure complete temperature range-0.95, 10
Operating pressure complete temperature range-13.775, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 60
Product weight1.24
Type of mountingWith retaining clamp
Pneumatic connection, port 1Cartridge 12 mm
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingReinforced PA
Material release ringPOM
Material o-ringHNBR
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 99

Genuine accessories that can be used with the Festo NPQX-D-PC12-Q4-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
