How can I get a price quote for Festo VABX-A-P-VE-BH-VB010L?

You can request a fast quote for Festo VABX-A-P-VE-BH-VB010L from Yılsa Engineering. Reference part number YLSDHKCXLBW8QN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABX-A-P-VE-BH-VB010L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABX-A-P-VE-BH-VB010L genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABX-A-P-VE-BH-VB010L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

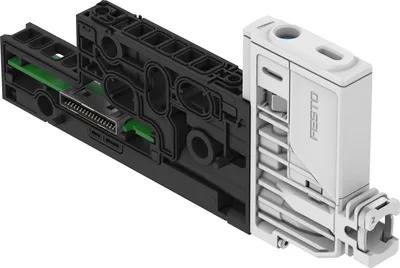

Festo VABX-A-P-VE-BH-VB010L

Manifold sub-base for vacuum

FestoMFR # VABX-A-P-VE-BH-VB010LSKU # YLSDHKCXLBW8QN

Width12.55

Length150.8

Nominal size, Laval nozzle0.95

Grid dimension12.55

Valve size10

Silencer designOpen

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-P-VE-BH-VB010L (Manifold sub-base for vacuum) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-P-VE-BH-VB010L — price, stock availability and technical specifications.

Festo VABX-A-P-VE-BH-VB010L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width12.55

Length150.8

Nominal size, Laval nozzle0.95

Grid dimension12.55

Valve size10

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Silencer designOpen

Type of actuationElectrical

Reverse polarity protectionYes

Sealing principleSoft

Mounting positionAny

Ejector characteristicHigh suction rate

Adjustment componentSlotted head screw

Max. number of valve positions1

Integrated functionEjector pulse, electrical, Ejector pulse valve, electric, Flow control, On/off valve, electric, Check valve, Open silencer, With electrical interlinking module

Type of pilotingPiloted

Pilot air supplyInternal

Symbol00997567, 00997712

Valve function2x3/2 closed monostable, 5/4-way valve with holding function, for vacuum generator

Compatible withValve terminal VTUX-A-P

Display typeLED

Signal status displayYellow LED, valve control

Operating pressure for max. suction flow rate0.6

Operating pressure for max. suction flow rate6

Operating pressure for max. suction flow rate87

Operating pressure0.2, 0.7

Operating pressure2, 7

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Pilot pressure0.2, 0.7

Pilot pressure2, 7

Max. suction flow rate against atmosphere45

Air supply time at nominal operating pressure0.42

Dimensions (W x L x H)12.55 mm x 150.8 mm x 68.8 mm

Inductive protective circuitIntegrated

Intern power consumption nominal operating voltageTyp. 2 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Storage temperature-20, 70

Relative air humidity5 - 95%

Degree of protectionIP65

Note on degree of protectionIn mounted state

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:-]

Ambient temperature-5, 50

Nominal altitude of use<= 2000 m NHN

Max. installation height2000

Product weight65

Electrical controlMulti-pin

Type of mountingTie rod

Pneumatic connection, port 2QS-4, QS-6, QS-8, QS-5/32, QS-1/8, QS-1/4, QS-5/16, For tubing outside diameter of 4 mm, For tubing outside diameter of 6 mm, For tubing outside diameter of 8 mm, For tubing outside diameter of 5/32",

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Material coverReinforced PA

Material sealsHNBR, NBR

Material receiver nozzlePOM

Material foilPolyester

Material housingReinforced PA

Material sleeveReinforced PA

Material clipHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Material o-ringHNBR, NBR

Material adjusting screwReinforced PA
