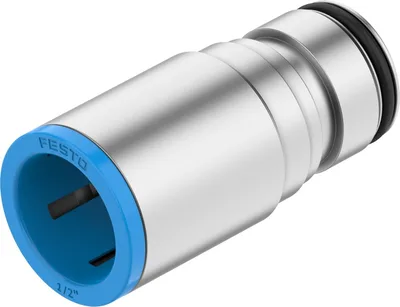

Festo NPQX-D-PC15-T12-P2

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

FestoMFR # NPQX-D-PC15-T12-P2SKU # YLSSJZQELQBZD6E

SizeStandard

Nominal size10

Tubing insertion depth25.4

Type of seal on screwed plugO-ring

Mounting positionAny

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

Festo NPQX-D-PC15-T12-P2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size10

Tubing insertion depth25.4

Type of seal on screwed plugO-ring

Mounting positionAny

DesignStraight design

Size of pack2

DesignPush-pull principle

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Operating pressure-13.775, 145

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Ambient temperature-5, 60

Product weight20.8

Type of mountingWith retaining clamp

Pneumatic connection, port 1Cartridge 15 mm

Pneumatic connection, port 2For tubing outside diameter of 1/2"

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingHigh-alloy steel

Material release ringReinforced PA

Material o-ringHNBR

Material tubing sealHNBR

Material tubing clamp componentHigh-alloy stainless steel
