Festo MPA-FB-VI
Valve terminal. Valve terminals for universal applications. High-performance valves in a sturdy metal housing. Metal linking. Two valve sizes can be combined. Excellent communication thanks to serial linking. Fieldbus interface via CPX. Max. 128 valves. Proportional technology. Integrated, convenient diagnostics thanks to serial linkage. Up to 8 voltage zones
Electrical controlFieldbus
Electrical I/O systemYes
Terminal type32
Media temperature-5, 50
Ambient temperature-5, 50
Storage temperature-20, 40
About This Product
Valve terminal. Valve terminals for universal applications. High-performance valves in a sturdy metal housing. Metal linking. Two valve sizes can be combined. Excellent communication thanks to serial linking. Fieldbus interface via CPX. Max. 128 valves. Proportional technology. Integrated, convenient diagnostics thanks to serial linkage. Up to 8 voltage zones
Festo MPA-FB-VI
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Electrical controlFieldbus
Electrical I/O systemYes
Terminal type32
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-5, 50
Ambient temperature-5, 50
Storage temperature-20, 40
Relative air humidityMax. 90% at 40 °C
Degree of protectionIP67
Corrosion resistance class CRC1 - Low corrosion stress
Operating pressure-0.09, 1
Operating pressure-0.9, 10
Pilot pressure0.3, 0.8
Pilot pressure3, 8
LABS (PWIS) conformityVDMA24364-B1/B2-L
CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
KC markKC-EMV
ApprovalRCM, c UL us - Recognised (Oil)
Explosion protectionZone 1 (UKEX), Zone 2 (ATEX), Zone 21 (UKEX)
ATEX category gasII 3G
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Explosion ignition protection type for gasEx ec IIC T4 Gc X
Explosion ambient temperature-5°C <= Ta <= +50°C
Certificate issuing authorityMH19482
Note on materialsRoHS compliant
Valve terminal structureModular, valve sizes can be mixed
Max. number of valve positions64
Max. number of pressure zones17
Type of actuationElectrical
Valve function2/2-way, single solenoid, closed, 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3-way proportional pressure regulator, 3/2-way, single solenoid, closed, 3/2-way,
DesignPiston gate valve, Poppet valve with spring return
Valve size14
Pilot air supplyExternal, Internal
Max. standard nominal flow rate360 l/min at 10 mm, 550 l/min at 14 mm, 700 l/min at 20 mm
Suitability for vacuumYes
Flat silencerAt one end
pneumatic working portM7, G1/8, QS-4, QS-6, QS-8, QS-3/16, QS-1/4, QS-5/16
Signal status displayLED
Nominal operating voltage DC24
Permissible voltage fluctuations+/-25%
Accessories 105
Genuine accessories that can be used with the Festo MPA-FB-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| VMPA14-M1H-KS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-J-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-M-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-B-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-E-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-G-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-H-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-D-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-I-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-MS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-KS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-NS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-X-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-W-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-K-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-N-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-DS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-HS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-PI | Solenoid valve · Valves | |
| VMPA14-M1H-X-PI | Solenoid valve · Valves | |
| VMPA14-M1H-W-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-KS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-KS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA1-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA2-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA14-M1H-ES-PI | Solenoid valve · Valves | |
| VMPA14-M1H-IS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-IU-PI | Solenoid valve · Valves | |
| VMPA14-M1H-EU-PI | Solenoid valve · Valves | |
| VMPA-FT-NW0.3-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW0.5-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW0.7-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.0-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.2-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.5-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA1-FTI-10 | Retaining bracket · Mounting accessories | |
| VMPA1-FT-NW0.3-1.7 | Fixed flow restrictor-SET · Mounting accessories | |
| VMPA-FT-NW1.7-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA14-FTI | Retainer · Mounting accessories | |
| VMPA2-FTI | Retainer · Mounting accessories | |
| VMPA14-FT-NW0.3-1.7 | Flow control SET · Mounting accessories | |
| VMPA2-FT-NW0.3-1.7 | Flow control SET · Mounting accessories | |
| VMPA-FB-SP-M12-V | Supply plate · Electrical accessories | |
| NECL-S-L12W4-C2-Q10 | Power supply plug · Electrical accessories | |
| NECL-L12W4-C2-Q10 | Power supply socket · Electrical accessories | |
| NECL-L12G4-C2-Q10 | Power supply socket · Electrical accessories | |
| NECL-S-L12G4-C2-Q10 | Power supply plug · Electrical accessories | |
| B-1/8 | Blanking plug · Other connectors | |
| NRH-35-2000 | DIN mounting rail · Mounting accessories | |
| QSM-M7-4-I | Push-in fitting · Push-in fittings | |
| QSM-M7-6-I | Push-in fitting · Push-in fittings | |
| B-M7 | Blanking plug · Other connectors | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| CPX | Terminal · Electrical accessories | |
| CPX-CPA-BG-NRH | Mounting · Mounting accessories | |
| NECL-S-L12G5-C2-Q10 | Power supply plug · Electrical accessories | |
| NECL-S-L12W5-C2-Q10 | Power supply plug · Electrical accessories | |
| NECL-L12G5-C2-Q10 | Power supply socket · Electrical accessories | |
| NECL-L12W5-C2-Q10 | Power supply socket · Electrical accessories |
Related Products
View Details
Festo
VTUB-12
MFR #VTUB-12
SKU #YLS1UR4IQGNNPEP
View Details
Festo
VTSA-F-FB-NPT
MFR #VTSA-F-FB-NPT
SKU #YLSBW6GNVWEGMI
View Details
Festo
CPV10-EX-VI
MFR #CPV10-EX-VI
SKU #YLS28PGIGSS2H
View Details
Festo
MPA-MPM-VI
MFR #MPA-MPM-VI
SKU #YLSDGFCIEBG6EB
View Details
Festo
MS9-FRM
MFR #MS9-FRM
SKU #YLSFOA6EBWAVVVG
View Details
Festo
VTSA-ASI-NPT
MFR #VTSA-ASI-NPT
SKU #YLSPHFUGZA4IOOM
View Details
Festo
VTSA-F-MP
MFR #VTSA-F-MP
SKU #YLSOWRDUGF7EXJX
View Details
Festo
VTSA-FB
MFR #VTSA-FB
SKU #YLS2RO5UEH8BHR0
View Details
Festo

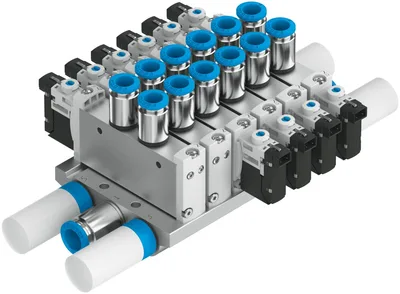

VTUG-S
