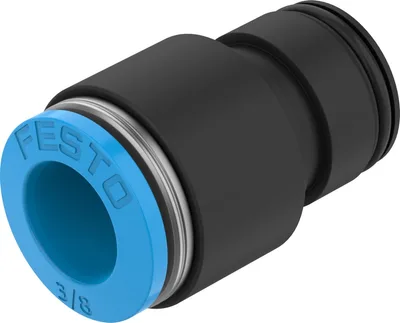

Festo NPQX-D-PC19-T38-P10

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

FestoMFR # NPQX-D-PC19-T38-P10SKU # YLSIVINB7EKVYE

SizeStandard

Nominal size6.4

Tubing insertion depth20.1

Type of seal on screwed plugNo seal

Mounting positionHorizontal

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

Cartridge. Specially developed for valve terminal VTUX. Versions with aluminium or polyamide housing. Straight shape

Festo NPQX-D-PC19-T38-P10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size6.4

Tubing insertion depth20.1

Type of seal on screwed plugNo seal

Mounting positionHorizontal

DesignStraight design

Size of pack10

DesignPush-pull principle

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Operating pressure-13.775, 145

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight10

Type of mountingWith retaining clamp

Pneumatic connection, port 1Cartridge 15 mm

Pneumatic connection, port 2For tubing outside diameter of 3/8"

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingReinforced PA

Material release ringPOM

Material o-ringNBR

Material tubing sealNBR

Accessories 19

Genuine accessories that can be used with the Festo NPQX-D-PC19-T38-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3/8-SI-150-CB	Plastic tubing · Tubing
PUN-H-3/8-BL-150-CB	Plastic tubing · Tubing
PUN-H-3/8-SW-150-CB	Plastic tubing · Tubing
PUN-H-3/8-NT-150-CB	Plastic tubing · Tubing
PUN-H-3/8-GE-150-CB	Plastic tubing · Tubing
PUN-H-3/8-GN-150-CB	Plastic tubing · Tubing
PUN-H-3/8-RT-150-CB	Plastic tubing · Tubing
PUN-H-3/8-BR-150-CB	Plastic tubing · Tubing
PUN-H-3/8-WS-150-CB	Plastic tubing · Tubing
PUN-H-3/8-BL-500-HA	Plastic tubing · Tubing
PUN-H-3/8-SW-500-HA	Plastic tubing · Tubing
PEN-3/8-SW-150-CB	Plastic tubing · Tubing
PEN-3/8-BL-150-CB	Plastic tubing · Tubing
PLN-3/8-NT-150-CB	Plastic tubing · Tubing
PLN-3/8-SW-150-CB	Plastic tubing · Tubing
PLN-3/8-BL-150-CB	Plastic tubing · Tubing
PUN-H-3/8-NT-500-HA	Plastic tubing · Tubing
PTFEN-3/8-NT-150	Plastic tubing · Tubing
NPAT-QX-T-V1	Release tool · Mounting accessories
