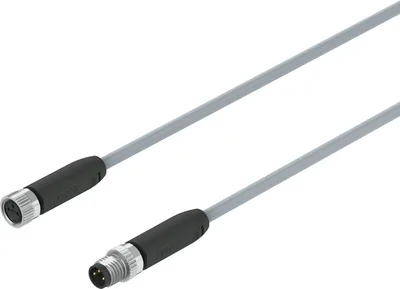

Festo NEBA-M8G3-U-5-N-M8G3

Connecting cable. Powerful universal connecting cables. Suitable for harsh environments and applications in constant motion or vibration. Meets the safety requirements of IEC 61010-1 and IEC 61010-2-202 for electrical equipment for measurement, control, and laboratory devices. High IP65, IP68, IP69k degree of protection. Resistant to abrasion and low adhesion. Suitable for use with energy chains and robots. Flame-retardant and self-extinguishing. Recommended for production plants for the manufacture of Li‑ion manifolds (F1A)

FestoMFR # NEBA-M8G3-U-5-N-M8G3SKU # YLSJZLHQXHPYR2F

Conforms to standardEN 61984

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E253748

Cable designationWithout inscription label holder

Frequency of connection100

Product weight100

Have questions?Chat on WhatsApp

About This Product

Festo NEBA-M8G3-U-5-N-M8G3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 61984

Approvalc UL us - Listed (Oil)

Intended useThe connecting cable connects field devices (sensors, actuators) with controllers.

Explosion protectionThe information in the certificate must be observed!, Zone 2 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityUL E253748

Cable designationWithout inscription label holder

Frequency of connection100

Product weight100

Instructions on useMeets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo., Only energy-limited circuits with a maximum current of 4 A at a max. open circuit vol

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, used connections/cores3

Electrical connection 1, type of mountingScrew-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00991871

Electrical connection 1, terminal allocationPin 1 = BN, Pin 3 = BU, Pin 4 = BK

Electrical connection 1, displayNone

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM8x1, A-coded to EN 61076-2-104

Electrical connection 2, number of connections/cores3

Electrical connection 2, used connections/cores3

electrical connection 2, type of mountingScrew-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable

Electrical connection 2, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 2, connection pattern00991155

Electrical connection 2, terminal allocationPin 1 = BN, Pin 3 = BU, Pin 4 = BK

Electrical connection 2, displayNone

Operational voltage range DC0, 60

Note on operational voltage range DC0 - 30 V for UL applications, NEC/CEC CLASS 2

Operational voltage range AC0, 48

Note on operational voltage range AC0 - 30 V for UL applications, NEC/CEC CLASS 2

Current rating at 40° C4

Note on permissible current load at 40°CObserve derating

Immunity to surge1.5

Cable length5

Cable characteristicSuitable for energy chains/robot applications, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing

Test conditions cableTest conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 28 mm

Notes on test conditions cableTested at 23°C

Bending radius, fixed cable12

Bending radius, moving cable39

Cable diameter3.8

Cable structure3 x 0.25 mm²

Nominal cross section conductor0.25

Degree of protectionIP65, IP68, IP69K

Note on degree of protectionIn mounted state

Special characteristicsUV-resistant, Hydrolysis-resistant, Resistant to cooling lubricants, Resistant to microbes, Oil-resistant, Ozone-resistant

Outdoor applicationsApplication areas with direct exposure to outdoor climatic influences Class D1 based on IEC 60654-1

Ambient temperature-40, 85

Note on ambient temperature-40 - 50°C for UL applications

Ambient temperature with moving cable-20, 85

Note on the ambient temperature with flexible cable installation-20 - 50°C for UL applications

Storage temperature-25, 55

Note on storage temperatureTemporarily during transport in packaging -40 ... 85 °C

Relative air humidityMax. 93% at 40 °C

Nominal altitude of use<= 2000 m NHN

Overvoltage categoryII

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Note on materialsFree of halogen, Free of phosphoric acid ester

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material sealsFluoro rubber

Material electrical contactGold-plated copper alloy

Material insulating sheathPP

Accessories 3

Genuine accessories that can be used with the Festo NEBA-M8G3-U-5-N-M8G3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEAU-LH-3	Inscription label holder · General accessories
ASLR-L-423	Inscription label · General accessories
NEAU-M8-GD	Safety clip · General accessories
