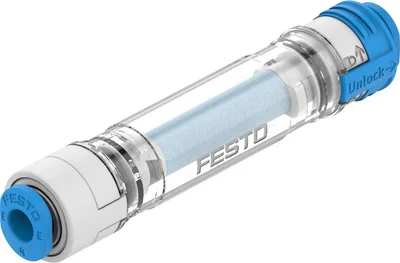

Festo OAFA-C-Q4-E-C
Inline filter. Inline filters for overpressure and vacuum applications. For tubing connections in various sizes. Grade of filtration: optionally 10 or 40 µm. Transparent housing to determine the contamination level. Replaceable filter element. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Optional: Mounting component OAMM
Nominal size4
Mounting positionAny
Grade of filtration5
Symbol00991483
Operating pressure-0.1, 1
Operating pressure-1, 10
About This Product
Inline filter. Inline filters for overpressure and vacuum applications. For tubing connections in various sizes. Grade of filtration: optionally 10 or 40 µm. Transparent housing to determine the contamination level. Replaceable filter element. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Optional: Mounting component OAMM
Festo OAFA-C-Q4-E-C
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size4
Instructions on useThe housing should not be cleaned with polar solvents (such as alcohol).
Mounting positionAny
Grade of filtration5
Symbol00991483
Operating pressure-0.1, 1
Operating pressure-1, 10
Operating pressure-14.5, 145
Operating mediumAir
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature0, 60
Product weight5.4
Type of mountingInline installation
Pneumatic connectionFor tubing O.D. 4 mm
Note on materialsRoHS compliant
Material sealsHNBR
Material filterPackaging unit
Material housingPA
Accessories 82
Genuine accessories that can be used with the Festo OAFA-C-Q4-E-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-4X0,75-SI | Plastic tubing · Tubing | |
| PAN-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-GN | Plastic tubing · Tubing | |
| PLN-4X0,75-NT | Plastic tubing · Tubing | |
| PLN-4X0,75-SW | Plastic tubing · Tubing | |
| PFAN-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubing | |
| PAN-V0-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TGE-500 | Plastic tubing · Tubing | |
| PTFEN-4X0,5-NT-100 | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-NT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-TBL | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-H-F-4X0,75-SW | Plastic tubing · Tubing | |
| PUN-H-4X0,75-RT-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-TBL-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL-25 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW-25 | Plastic tubing · Tubing | |
| OAMM-A2-A-Q3Q4 | Mounting bracket · Mounting accessories | |
| OAFC-A2-Q3Q4-E-E | Filter cartridge · General accessories | |
| OAFC-A2-Q3Q4-E-F | Filter cartridge · General accessories | |
| PUN-H-LC-4X0,75-BL | Plastic tubing · Tubing | |
| PUN-H-LC-4X0,75-HBL | Plastic tubing · Tubing | |
| PAN-R-4X0,75-SI | Heavy-duty tubing · Tubing | |
| PEN-4X0,75-SW | Plastic tubing · Tubing | |
| PEN-4X0,75-NT | Plastic tubing · Tubing | |
| PAN-4X0,75-NT | Plastic tubing · Tubing | |
| PEN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PEN-4X0,75-BL | Plastic tubing · Tubing | |
| PEN-4X0,75-SI | Plastic tubing · Tubing | |
| PEN-4X0,75-GN | Plastic tubing · Tubing | |
| PEN-4X0,75-RT | Plastic tubing · Tubing | |
| PEN-4X0,75-GE | Plastic tubing · Tubing | |
| PEN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PAN-4X0,75-BL | Plastic tubing · Tubing | |
| PAN-4X0,75-SW | Plastic tubing · Tubing | |
| PAN-4X0,75-GN | Plastic tubing · Tubing | |
| PAN-4X0,75-RT | Plastic tubing · Tubing | |
| PAN-4X0,75-GE | Plastic tubing · Tubing | |
| PUN-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SW-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-NT-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI-500 | Plastic tubing · Tubing | |
| PUN-H-4X0,75-SI | Plastic tubing · Tubing | |
| PUN-H-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GN | Plastic tubing · Tubing | |
| PUN-H-4X0,75-GE | Plastic tubing · Tubing | |
| PLN-4X0,75-BL | Plastic tubing · Tubing | |
| PLN-4X0,75-SI | Plastic tubing · Tubing | |
| PLN-4X0,75-RT | Plastic tubing · Tubing | |
| PUN-H-5/32-BL-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/32-SW-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/32-NT-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/32-BR-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/32-SW-500-HA | Plastic tubing · Tubing | |
| PUN-V0-4X1-SW-C | Plastic tubing · Tubing | |
| PUN-V0-4X1-BL-C | Plastic tubing · Tubing | |
| PUN-4X0,75-BL-500 | Plastic tubing · Tubing | |
| PUN-4X0,75-SI-500 | Plastic tubing · Tubing |
