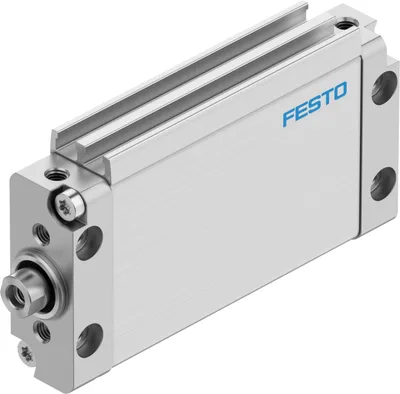

FESTO DZF-25-40-P-A

Flat cylinder. Extremely flat design. Protected against rotation thanks to special piston shape. Ideal for manifold assembly. Wide variety of mounting and attachment options. Piston rod with female or male thread. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FESTOMFR # DZF-25-40-P-ASKU # CEY-937FC78240E7

Stroke40

Piston diameter25 mm, Equivalent diameter

Piston rod threadM5

Torsional backlash at piston rod +/-1

Mounting positionAny

Mode of operationDouble-acting

Have questions?Chat on WhatsApp

About This Product

FESTO DZF-25-40-P-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke40

Piston diameter25 mm, Equivalent diameter

Piston rod threadM5

Torsional backlash at piston rod +/-1

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod

Position detectionVia proximity switch

Symbol00991217

VariantsPiston rod at one end

Protection against torque/guideOval piston

Operating pressure0.1, 1

Operating pressure1, 10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Impact energy in end positions0.1

Max. torque for protection against torsion0.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295

Moving mass for 0 mm stroke40

Additional moving mass per 10 mm stroke6

Additional weight per 10 mm stroke18

Basic weight for 0 mm stroke168

Type of mountingWith female thread, With accessories

Pneumatic connectionM5

Material coverDie-cast aluminium

Material sealsHNBR, TPE-U(PU)

Material housingAnodised wrought aluminium alloy

Material piston sealNBR

Material piston rodHigh-alloy stainless steel

Accessories 154

Genuine accessories that can be used with the FESTO DZF-25-40-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
HZF-25	Foot mounting · Cylinder mountings
FZF-25	Flange mounting · Cylinder mountings
SZF-25	Swivel flange · Cylinder mountings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
QSM-M5-4	Push-in fitting · Fittings
QSM-M5-4-I	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T-quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T-quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLO-M5-B	Throttle valve · Function fittings
GRLO-M5-PK-3-B	Throttle valve · Function fittings
ABP-5-S	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SMB-8E	Mounting kit · Mounting kits for proximity sensors, other sensors
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-M5-B	Piloted check valve · Function fittings
HGL-M5-QS-4	Piloted check valve · Function fittings
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SMBK-8	Clip · Mounting accessories
SMBN-10	Mounting · Mounting kits for proximity sensors, other sensors
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMM-8	Positioning element · Mounting accessories
SMAT-8M-U-E-0,3-M8D	Position transmitter · Cylinder sensors for direct mounting
SMT-8-SL-PS-LED-24-B	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
DARP-M5-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
