Festo
SLM-12- -KF-A 32781
MFR #SLM-12- -KF-A
SKU #YLSJUGDEFECDIEK
Photo may not represent actual item. Refer to name and product specs for all details.

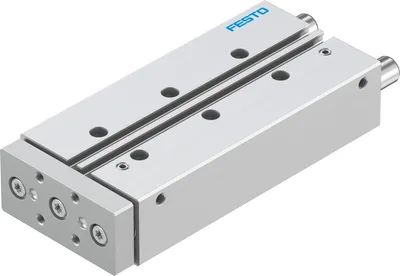

Festo DFM-16- -B
Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Stroke10, 200
Piston diameter16 mm
Operating mode, drive unitYoke
Mounting positionAny
DesignGuidance
Position detectionVia proximity switch
About This Product
Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Festo DFM-16- -B
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke10, 200
Piston diameter16 mm
Operating mode, drive unitYoke
CushioningElastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends
Mounting positionAny
GuidePlain-bearing guide, Recirculating ball bearing guide
DesignGuidance
Position detectionVia proximity switch
VariantsHeat-resistant seals max. 120°C
Operating pressure0.2, 1
Operating pressure2, 10
Mode of operationDouble-acting
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX)
ATEX category gasII 2G
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ambient temperature-20°C <= Ta <= +70°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC0 - No corrosion stress, 2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 120
Impact energy in end positions0.075, 0.15
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke104
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121
alternative connectionsSee product drawing
Pneumatic connectionM5
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
