How can I get a price quote for FESTO ADNGF-25-30-PPS-A?

You can request a fast quote for FESTO ADNGF-25-30-PPS-A from Yılsa Engineering. Reference part number CEY-937FC781BBED. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO ADNGF-25-30-PPS-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO ADNGF-25-30-PPS-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO ADNGF-25-30-PPS-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

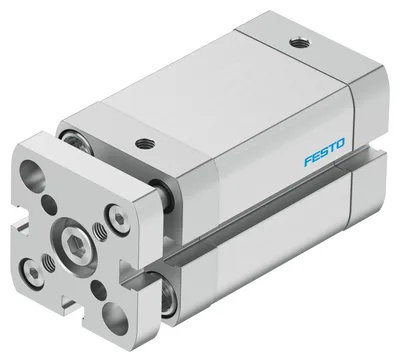

FESTO ADNGF-25-30-PPS-A

Compact cylinder. For position sensing. Standards-based cylinders to ISO 21287. Good running performance and long service life. With fixed or self-adjusting cushioning. Optionally available with a through piston rod

FESTOMFR # ADNGF-25-30-PPS-ASKU # CEY-937FC781BBED

Stroke30

Piston diameter25 mm

Based on standardISO 21287

Mounting positionAny

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Have questions?Chat on WhatsApp

About This Product

FESTO ADNGF-25-30-PPS-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke30

Piston diameter25 mm

Based on standardISO 21287

CushioningSelf-adjusting pneumatic end-position cushioning

Mounting positionAny

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Protection against torque/guideGuide rod with yoke

Operating pressure0.19, 1

Operating pressure1.9, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Impact energy in end positions0.3

Cushioning length3.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295

Moving mass127

Product weight309

Pneumatic connectionM5

Note on materialsRoHS compliant

Material collar screwsSteel

Material coverAnodised wrought aluminium alloy

Material sealsTPE-U(PUR)

Material end plateAnodised wrought aluminium alloy

Material piston rodHigh-alloy steel

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 150

Genuine accessories that can be used with the FESTO ADNGF-25-30-PPS-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
QSM-M5-4	Push-in fitting · Fittings
QSM-M5-4-I	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
FNC-25	Flange mounting · Cylinder mountings
SNCL-25	Swivel flange · Cylinder mountings
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T-quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T-quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLO-M5-B	Throttle valve · Function fittings
GRLO-M5-PK-3-B	Throttle valve · Function fittings
ABP-5-S	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-M5-B	Piloted check valve · Function fittings
HGL-M5-QS-4	Piloted check valve · Function fittings
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
DPNA-25	Multi-position kit · Cylinder mountings
SNCL-25-R3	Swivel flange · Cylinder mountings
SMBN-10	Mounting · Mounting kits for proximity sensors, other sensors
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8-SL-PS-LED-24-B	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
