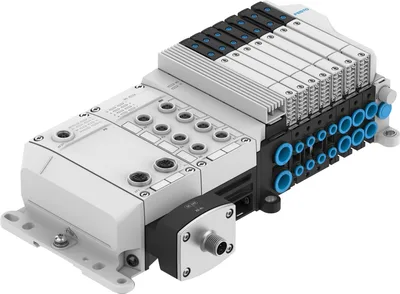

Festo VTUX-A-P-APA-

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VTUX-A-P-APA-

Valve terminal. Flexible for centralised and decentralised installation. Compact, lightweight yet robust. Modular and cost-effective. High flow rates. Versatile options for creating pressure zones. Sustainable operation thanks to efficient control. Sustainable manufacturing thanks to a compact design and reduced use of materials

FestoMFR # VTUX-A-P-APA-SKU # YLSJPM61D57LZDA
Mounting method for sub-baseWith through-hole
Grid dimension10.55, 16.05
Type of mountingTie rod
Ambient temperature-5, 50
Storage temperature-20, 70
Nominal altitude of use<= 2000 m NHN
Share
Have questions?Chat on WhatsApp

About This Product

Valve terminal. Flexible for centralised and decentralised installation. Compact, lightweight yet robust. Modular and cost-effective. High flow rates. Versatile options for creating pressure zones. Sustainable operation thanks to efficient control. Sustainable manufacturing thanks to a compact design and reduced use of materials

Festo VTUX-A-P-APA-

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Mounting method for sub-baseWith through-hole
Grid dimension10.55, 16.05
Type of mountingTie rod
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature-5, 50
Storage temperature-20, 70
Nominal altitude of use<= 2000 m NHN
Max. installation height3500
Degree of protectionIP40, IP65
Corrosion resistance class CRC1 - Low corrosion stress
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 1
Operating pressure-0.1, 0.7
Operating pressure-1, 7
Pilot pressure0.15, 0.7
Pilot pressure1.5, 7
Operating pressure for valve terminal with internal pilot air supply0.15, 0.7
Operating pressure for valve terminal with internal pilot air supply1.5, 7
Operating pressure for valve terminal with internal pilot air supply21.75, 101.5
LABS (PWIS) conformityVDMA24364-C1-L
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
KC markKC-EMV
ApprovalRCM, c UL us - Listed (Oil)
Certificate issuing authorityUL E322346
Suitable for use with foodNSF H1
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Valve terminal structureModular and expandable
Max. number of valve positions32
Max. number of pressure zones16
Type of actuationElectrical
Valve function2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 5/2-way, double solenoid, 5/2-way, single solenoid, 5/3-way, closed, 5/3-way valve with holding function, for vacuum switching uni
DesignPiston gate valve
Sealing principleSoft
Type of pilotingPiloted
Valve size15
Pilot air supplyExternal, Internal
Nominal flow rate standardised according to ISO 8778470, 1650
Flow directionReversible with restrictions
Suitability for vacuumYes
Exhaust-air functionCan be throttled
Pneumatic connection, port 1QS-6, QS-8, Silencer, For 15 mm cartridge, Blanking plug
Pneumatic connection, port 2QS-3, QS-4, QS-6, QS-8, QS-5/32, QS-1/8, QS-1/4, QS-5/16, QS-3/8, For 10 mm cartridge, For 12 mm cartridge, For 15 mm cartridge, Blanking plug
Pneumatic connection, port 3QS-6, QS-8, QS-5/16, QS-3/8, For 15 mm cartridge, Silencer
Pneumatic connection, port 4QS-3, QS-4, QS-6, QS-8, QS-5/32, QS-5/16, QS-3/8, Silencer, For 10 mm cartridge, For 12 mm cartridge, For 15 mm cartridge, Blanking plug
Pneumatic connection, port 5QS-6, QS-8, QS-10, QS-12, QS-14, QS-5/16, QS-1/4, QS-3/8, QS-1/2, Silencer, For 15 mm cartridge, Blanking plug
Pilot air port 12/14QS-4, QS-6, QS-8, QS-10, QS-5/16, QS-1/4, For 12 mm cartridge, For 15 mm cartridge
Pilot exhaust port 82/84QS-4, QS-6, QS-8, QS-10, QS-5/16, QS-1/4, Silencer, For 12 mm cartridge, For 15 mm cartridge
Nominal operating voltage DC24
Permissible voltage fluctuations+/-10%

Accessories 119

Genuine accessories that can be used with the Festo VTUX-A-P-APA- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
NEBC-D12G4-ES-3-S-D12G4-ETConnecting cable · Connecting cables
NEBC-D12G4-ES-5-S-D12G4-ETConnecting cable · Connecting cables
NEBC-D12G4-ES-3-S-R3G4-ETConnecting cable · Connecting cables
NEBC-D12G4-ES-5-S-R3G4-ETConnecting cable · Connecting cables
NEBA-M12G5-U-5-N-M12G5Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-M12G5Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
CPX-AP-A-S-2-M12-4PSystem supply · Electrical accessories
NPQX-D-PC15-T14-P10Cartridge · Push-in fittings
VUVX-BK10-T32H-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-T32CV-A1ZH-F-1T1LSolenoid valve · Valves
VABX-A-P-VE-BH-VB010LManifold sub-base for vacuum · Electrical accessories
VABX-A-P-VE-BH-VB07HManifold sub-base for vacuum · Electrical accessories
VABX-A-P-VE-BH-VB07LManifold sub-base for vacuum · Electrical accessories
NPQX-D-PC15-Q14-P2Cartridge · Push-in fittings
NPQX-D-PC15-T12-P2Cartridge · Push-in fittings
NPQX-D-PC15-Q6-P10Cartridge · Push-in fittings
VUVX-...T1Solenoid valve · Valves
VABB-XA-10-TCover plate · General accessories
NPQX-D-PC10-Q4-P10Cartridge · Push-in fittings
NPQX-D-PC10-Q6-P10Cartridge · Push-in fittings
NPQX-D-PC12-Q4-P10Cartridge · Push-in fittings
NPQX-D-PC12-Q6-P10Cartridge · Push-in fittings
NPQX-D-PC12-Q8-P10Cartridge · Push-in fittings
NPQX-D-PC15-Q8-P10Cartridge · Push-in fittings
NPQX-D-PC15-Q10-P10Cartridge · Push-in fittings
NPQX-D-PC10-T532-P10Cartridge · Push-in fittings
NPQX-D-PC10-T14-P10Cartridge · Push-in fittings
NPQX-D-PC10-T18-P10Cartridge · Push-in fittings
NPQX-D-PC12-T532-P10Cartridge · Push-in fittings
NPQX-D-PC12-T516-P10Cartridge · Push-in fittings
NPQX-D-PC12-T14-P10Cartridge · Push-in fittings
NPQX-D-PC15-T516-P10Cartridge · Push-in fittings
VUVX-BK10-M52-A1ZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-M52-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-B52-ZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-T32C-A1ZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-T32C-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-T32U-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-P53C-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-P54E-MZH-F-1T1LSolenoid valve · Valves
VABX-A-P-BV-AH-FManifold sub-base · Electrical accessories
VABX-A-P-BV-AH-AManifold sub-base · Electrical accessories
VABX-A-P-BV-AH-RVFFFFManifold sub-base · Electrical accessories
VABX-A-P-BV-AH-RVAAAAManifold sub-base · Electrical accessories
VABX-A-P-BV-BH-GManifold sub-base · Electrical accessories
VABX-A-P-BV-BH-BManifold sub-base · Electrical accessories
VABX-A-P-BV-BH-RVGGGGManifold sub-base · Electrical accessories
VABX-A-P-BV-BH-RVBBBBManifold sub-base · Electrical accessories
VABX-A-P-EL-E12-APA-SHUH-XLManifold sub-base · Electrical accessories
NPQX-D-PC19-T38-P10Cartridge · Push-in fittings
VABD-XA-12-P1Separator · General accessories
VABD-XA-12-P2Separator · General accessories
VAME-XA-WWall mounting · Mounting accessories
AMTX-P-PC12Silencer · Silencer
VABF-XA-12-M1-CExhaust plate · Connection accessories
ASLR-C-XA-TTInscription label · General accessories
ASLR-C-XA-TRInscription label · General accessories
ASLR-C-XA-TSInscription label · General accessories
VAME-XA-S-M4-30Screws-SET · Connection accessories
VAME-XA-S-M4-45Screws-SET · Connection accessories
NPQX-P-PC10Blanking plug · Other connectors
NPQX-P-PC12Blanking plug · Other connectors
NPQX-P-PC15Blanking plug · Other connectors
VAME-XA-Z-10Tie rod · Connection accessories
VAME-XA-Z-12Tie rod · Connection accessories
VAME-XA-Z-16Tie rod · Connection accessories
VAME-XA-Z-17Tie rod · Connection accessories
VAME-XA-Z-19Tie rod · Connection accessories
VAME-XA-Z-29Tie rod · Connection accessories
VAME-XA-Z-38Tie rod · Connection accessories
VAME-XA-Z-42Tie rod · Connection accessories
VAME-XA-Z-50Tie rod · Connection accessories
VAME-XA-Z-61Tie rod · Connection accessories
VAME-XA-Z-84Tie rod · Connection accessories
VAME-XA-Z-107Tie rod · Connection accessories
VAME-XA-Z-130Tie rod · Connection accessories
VAME-XA-Z-150Tie rod · Connection accessories
VAME-XA-Z-170Tie rod · Connection accessories
VAME-XA-Z-190Tie rod · Connection accessories
VAME-XA-H DIN rail attachment · Mounting accessories
VABX-A-P-BU-12-SHUH-UManifold sub-base · Electrical accessories
VABF-XA-12-M2-QXPlate · Connection accessories
VAMC-XA-CSCover cap · General accessories
VAMC-XA-CDCover cap · General accessories
OAFA-C-Q4-E-FInline filter · General accessories
OAFA-C-Q4-E-EInline filter · General accessories
OAFA-C-Q6-E-FInline filter · General accessories
OAFA-C-Q6-E-EInline filter · General accessories
OAFA-C-Q8-E-FInline filter · General accessories
OAFA-C-Q8-E-EInline filter · General accessories
VABX-A-P-VE-BH-VB010HManifold sub-base for vacuum · Electrical accessories
NPAT-QX-T-V1Release tool · Mounting accessories
NPQX-D-PC15-Q12-P2Cartridge · Push-in fittings
VABX-A-P-VP-BH-VH Manifold sub-base for vacuum · Electrical accessories
VUVX-BK10-P54CV-MZH-F-1T1LSolenoid valve · Valves
VUVX-BK10-P53CD-A1ZH-F-1T1LSolenoid valve · Valves
ASCF-RP1-XA-100Label holder · General accessories
ASCF-RP3-XA-100Label holder · General accessories
ASCF-P1-XA-1000Label holder · General accessories
ASCF-P3-XA-1000Label holder · General accessories
ASCF-RP1-XA-50Label holder · General accessories
ASCF-RP1-XA-42Label holder · General accessories
ASCF-RP3-XA-50Label holder · General accessories
ASCF-RP3-XA-42Label holder · General accessories
ASCF-RP1-XA-84Label holder · General accessories
ASCF-RP3-XA-84Label holder · General accessories
VABB-XA-8ESealing cap · General accessories
OAFA-C-Q4-E-CInline filter · General accessories
OAFA-C-Q3-E-FInline filter · General accessories
OAFA-C-Q3-E-CInline filter · General accessories
OAFA-C-Q10-E-CInline filter · General accessories
OAFA-C-Q6-E-CInline filter · General accessories
OAFA-C-Q8-E-CInline filter · General accessories
OAFA-C-Q10-E-FInline filter · General accessories
OAFA-C-Q10-E-EInline filter · General accessories
OAFA-C-Q3-E-EInline filter · General accessories
AMTX-LP-PC15Silencer · Silencer
