How can I get a price quote for Festo VABX-A-P-EL-E12-APA-SHUH-XL?

You can request a fast quote for Festo VABX-A-P-EL-E12-APA-SHUH-XL from Yılsa Engineering. Reference part number YLSEMX9RBQHET. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABX-A-P-EL-E12-APA-SHUH-XL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABX-A-P-EL-E12-APA-SHUH-XL genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABX-A-P-EL-E12-APA-SHUH-XL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

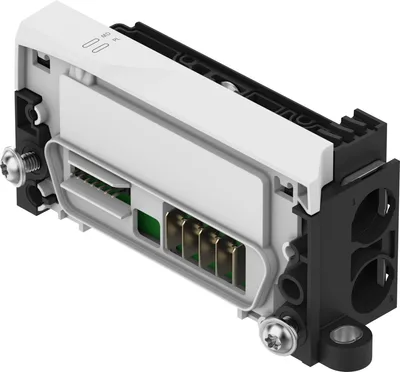

Festo VABX-A-P-EL-E12-APA-SHUH-XL

Manifold sub-base

FestoMFR # VABX-A-P-EL-E12-APA-SHUH-XLSKU # YLSEMX9RBQHET

Size1, 2

Position of connectionOn the side

Reverse polarity protectionYes

Valve terminal structureValve sizes can be mixed

Max. number of valve coils32

Compatible withValve terminal VTUX-A-P

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-P-EL-E12-APA-SHUH-XL (Manifold sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-P-EL-E12-APA-SHUH-XL — price, stock availability and technical specifications.

Festo VABX-A-P-EL-E12-APA-SHUH-XL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size1, 2

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Position of connectionOn the side

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per module, Load power supply

Diagnostics per internal communicationSwitch-off load supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage

Valve terminal structureValve sizes can be mixed

Max. number of valve coils32

Module parametersConfiguration of voltage monitoring load supply PL, Behaviour in error state

Compatible withValve terminal VTUX-A-P

Dimensions (W x L x H)35.2 mm x 117.2 mm x 56.1 mm

Fuse protection (short circuit)Internal electronic fuse per channel

Inductive protective circuitIntegrated

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypical 27 mA

Intrinsic current consumption at nominal operating voltage loadTypical 13 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Power consumption at 24VDC0.65

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Electrical isolation of outputs between channel - internal communicationYes

Potential separation between the supply voltages electronics/sensor technology aYes

ProtocolAP

Pollution degree2

Permissible voltage fluctuations for electronics/sensors±25%

Permissible voltage fluctuation of load±10%

Power supply, functionIncoming electronics/sensors and load

Power transmission, functionOutgoing electronics/sensors and load

Undervoltage load/valves (diagnostic message)21.1

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 70

Relative air humidity5 - 95%

Protection against direct and indirect contactPELV, Safety extra-low voltage

Degree of protectionIP65

Overvoltage categoryII

Ambient temperature-20, 50

Nominal altitude of use<= 2000 m NHN

Max. installation height3500

Max. tightening torque wall mounting6

Product weight126.7

Electrical controlAP interface

Max. address volume, outputs4

Communication interface, protocolAP

Mounting method for sub-baseWith through-hole

Type of mountingVia through-hole for M5 screw

Pneumatic connection, port 1For 15 mm cartridge

Pneumatic connection, port 5For 15 mm cartridge

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Material coverReinforced PA

Material sealsNBR

Material sleeveHigh-alloy stainless steel

Material clipHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Accessories 11

Genuine accessories that can be used with the Festo VABX-A-P-EL-E12-APA-SHUH-XL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQX-D-PC15-T14-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q14-P2	Cartridge · Push-in fittings
NPQX-D-PC15-T12-P2	Cartridge · Push-in fittings
NPQX-D-PC15-Q6-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q8-P10	Cartridge · Push-in fittings
NPQX-D-PC15-Q10-P10	Cartridge · Push-in fittings
NPQX-D-PC15-T516-P10	Cartridge · Push-in fittings
VABF-XA-12-M1-C	Exhaust plate · Connection accessories
NPQX-P-PC15	Blanking plug · Push-in fittings
VABF-XA-12-M2-QX	Plate · Connection accessories
NPQX-D-PC15-Q12-P2	Cartridge · Push-in fittings
