Festo
DSL-16- -270-P-A-S20-B
MFR #DSL-16- -270-P-A-S20-B
SKU #YLSNFXC2ASVOIXP
Photo may not represent actual item. Refer to name and product specs for all details.

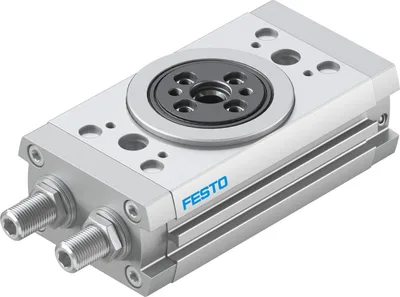

FESTO DRRD-16-180-FH-PA
Semi-rotary drive. Twin-piston drive, power transmission via rack and pinion principle. Premium drive for very high energy absorption (load capacity and speed). Very high precision and long service life. Many additional features such as mid-position or air and energy through-feed can be adapted. Sustainable thanks to extended life cycle and easier repairs. Sustainable in production thanks to reduced use of materials
Size16
Cushioning angle36
Swivel angle180
Mounting positionAny
DesignRack and pinion
Position detectionVia proximity switch
About This Product
Semi-rotary drive. Twin-piston drive, power transmission via rack and pinion principle. Premium drive for very high energy absorption (load capacity and speed). Very high precision and long service life. Many additional features such as mid-position or air and energy through-feed can be adapted. Sustainable thanks to extended life cycle and easier repairs. Sustainable in production thanks to reduced use of materials
FESTO DRRD-16-180-FH-PA
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size16
Cushioning angle36
Setting range of swivel angle for each end position+10 /-100 deg
Swivel angle180
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
DesignRack and pinion
Position detectionVia proximity switch
Symbol00991265
Operating pressure0.3, 0.8
Operating pressure3, 8
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
Ambient temperature-10, 60
Theoretical torque at 0.6 MPa (6 bar, 87 psi)1.59
Permissible mass moment of inertia0.0175
Product weight640
Type of mountingWith through-hole, With female thread
Pneumatic connectionM5
Note on materialsRoHS compliant
Material drive shaftTempered steel
Material coverWrought aluminium alloy, anodised
Material sealsNBR, TPE-U(PU)
Material housingSmooth-anodised
