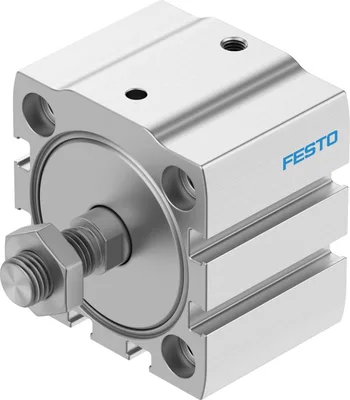

Festo AEN-S-40-5-A-P-A
Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing
Stroke5
Piston diameter40 mm
Mounting positionAny
Mode of operationPushing
Piston-rod endMale thread
DesignPiston, Piston rod
About This Product
Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing
Festo AEN-S-40-5-A-P-A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke5
Piston diameter40 mm
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
Mode of operationPushing
Piston-rod endMale thread
DesignPiston, Piston rod
Position detectionVia proximity switch
Symbol00991729
VariantsPiston rod at one end
Operating pressure0.1, 1
Operating pressure1, 10
Operating pressure14.5, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature0, 80
Impact energy in end positions0.7
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke38
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke700
Moving mass for 0 mm stroke62
Additional moving mass per 10 mm stroke9
Basic weight for 0 mm stroke304
Additional weight per 10 mm stroke45
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connectionM5
Note on materialsRoHS compliant
Material coverAnodised wrought aluminium alloy
Material dynamic sealsTPE-U(PU)
Material housingAnodised wrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Accessories 179
Genuine accessories that can be used with the Festo AEN-S-40-5-A-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SG-M10X1,25 | Rod clevis · Piston-rod attachments | |
| FNC-40 | Flange mounting · Mounting accessories | |
| SGS-M10X1,25 | Rod eye · Piston-rod attachments | |
| HNA-40 | Foot mounting · Mounting accessories | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| QSM-M5-4 | Push-in fitting · Fittings | |
| QSM-M5-4-I | Push-in fitting · Fittings | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| FK-M10X1,25 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| GRLZ-M5-QS-4-D | One-way flow control valve · Function fittings | |
| VFOE-LS-T-M5-Q4 | One-way flow control valve · Function fittings | |
| SDAT-MHS-M100-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M125-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M160-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M50-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M80-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| NEBA-M8G4-U-2.5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8G4-U-5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W4-U-2.5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8W4-U-5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12W5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12W5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| CK-M5-PK-3 | Quick connector · Quick connectors | |
| CK-M5-PK-4 | Quick connector · Quick connectors | |
| N-M5-PK-3 | Barbed fitting · Barbed fittings | |
| LCK-M5-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-3 | T quick connector · Quick connectors | |
| LCK-M5-PK-4 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-4 | T quick connector · Quick connectors | |
| N-M5-PK-4 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-3 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-4 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-M5-PK-4 | Barbed T-fitting · Barbed fittings | |
| CRSG-M10X1,25 | Rod clevis · Stainless-steel piston-rod attachments | |
| CN-M5-PK-2 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-2 | Barbed T-fitting · Barbed fittings | |
| KSG-M10X1,25 | Coupling piece · Piston rod attachments | |
| LCNH-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| KSZ-M10X1,25 | Coupling piece · Piston rod attachments | |
| QSM-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-5/32-I-U-M | Push-in fitting · Push-in fittings | |
| QSML-M5-3-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6-100 | Push-in L-fitting · Push-in fittings | |
| QSM-M5-3-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-100 | Push-in fitting · Push-in fittings | |
| QSMT-M5-4-100 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6-100 | Push-in T-fitting · Push-in fittings | |
| QSMLV-M5-3-I | Push-in L-fitting · Push-in fittings | |
| QSMLV-M5-4-I | Push-in L-fitting · Push-in fittings | |
| QSMLLV-M5-3-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLLV-M5-4-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-3 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-3-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R | Push-in fitting · Push-in fittings | |
| QSMLL-M5-3-100 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-2 | Push-in fitting · Push-in fittings | |
| QSML-M5-2 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-2 | Push-in L-fitting, long · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLZ-M5-B | One-way flow control valve · Function fittings | |
| GRLZ-M5-RS-B | One-way flow control valve · Function fittings | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSMK-M5-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-M5-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-M5-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-M5-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSM-M5-3 | Push-in fitting · Push-in fittings | |
| QSM-M5-6 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I | Push-in fitting · Push-in fittings | |
| QSML-M5-3 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSR-M5-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-M5-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-M5-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-M5-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| AD-M10X1,25-1/8 | Adapter · Piston rod attachments | |
| AD-M10X1,25-1/4 | Adapter · Piston rod attachments | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRZNG-40 | Trunnion flange · Cylinder mountings | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNCS-40 | Swivel flange · Cylinder mountings | |
| SNCL-40 | Swivel flange · Cylinder mountings | |
| ZNCF-40 | Trunnion flange · Cylinder mountings | |
| GRLZ-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLZ-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSM-M5-1/8-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| MSK-M10X1,25 | Hex nut · Piston rod attachments | |
| QSLV-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSY-M5-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-M5-6 | Push-in Y-fitting · Push-in fittings | |
| QS-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLZ-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLZ-M5-QS-6-D | One-way flow control valve · Function fittings | |
| CRSGS-M10X1,25 | Rod eye · Stainless-steel piston-rod attachments | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRFK-M10X1,25 | Self-aligning rod coupler · Stainless-steel piston-rod attachments | |
| NPFC-D-2M5-M | Double nipple · Other connectors | |
| NPFC-R-G18-M5-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| NPFC-E1-2M5-FM | Extension · Other connectors | |
| NPFC-R-M5-M3-MF | Reducing nipple · Other connectors | |
| NPFC-DS-M5-M5-M | Double nipple · Other connectors | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| GRLA-M5-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-M5-RS-B | One-way flow control valve · Function fittings | |
| SNCB-40 | Swivel flange · Cylinder mountings | |
| GRLA-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-RS-D | One-way flow control valve · Function fittings | |
| DPNA-40 | Multi-position kit · Cylinder mountings |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Related Searches
Festo AEN-S-40-5-A-P-A priceFesto AEN-S-40-5-A-P-A quotebuy Festo AEN-S-40-5-A-P-AAEN-S-40-5-A-P-A priceAEN-S-40-5-A-P-A stock availabilityFesto spare partsFesto AEN-S-40-5-A-P-A equivalentFesto AEN-S-40-5-A-P-A specifications
