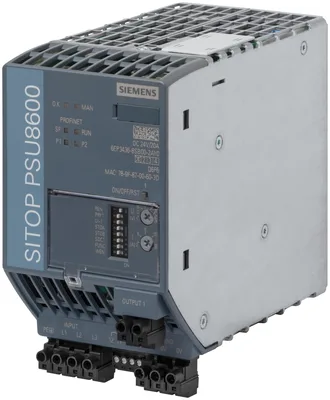

Siemens 6EP3436-8SB00-2AY0

SITOP PSU8600 3AC 20 A PN stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/20 A ile PN/IE bağlantı web server dahili OPC UA server dahili

SiemensMFR # 6EP3436-8SB00-2AY0SKU # CEY-8EF3B03871C5

product brand nameSITOP

product type designationPSU8600

product designationPower supply SITOP PSU8600

type of current supply24 V/20 A

type of the power supply network3-phase AC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU8600 3AC 20 A PN stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/20 A ile PN/IE bağlantı web server dahili OPC UA server dahili

Siemens 6EP3436-8SB00-2AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU8600

product designationPower supply SITOP PSU8600

type of current supply24 V/20 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value320 V

full-scale value575 V

supply voltage at ACDerating 320... 360 ve 530... 575 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingVin = 400 V; Prioritized supply of the output in case of power failure selectable via DIP switch (only in conjunction with CNX8600 expansion module)

at rated input voltage 400 V1,4 A

at rated input voltage 500 V1,1 A

current limitation of inrush current at 25 °C maximum14 A

I2t value maximum1,2 A²·s

fuse protection typeyok

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 6... 16 A characteristic C veya circuit breaker 3RV2011-1DA10 (setting 3 A) veya 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

number of outputs1

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC5... 24 V

output voltage adjustableVar; via potentiometer veya IE/PN interface

adjustable output voltage4... 28 V; Derating > 24 V: 4%/V; maks. 480 W overall system

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,2 %

on slow fluctuation of ohm loading0,1 %

maximum100 mV

maximum200 mV

display version for normal operation3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED for operating state output

type of signal at outputRelay contact (changeover contact, contact current capacity DC 60 V/0,3 A) for "Operating state OK"

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum1 s

type of outputs connectionsimultaneous switch-on of all outputs after device power-up veya delay time of 25 ms, 100 ms, veya "load-optimized" for sequential switch-on of the outputs via DIP switch configurable (only in connection with expansion module CNX8600)

maximum500 ms

rated value20 A

per output20 A

at output 1 rated value20 A

rated range0... 20 A; +50... +60 °C: Derating 2,5%/K; no derating in connection with expansion module CNX8600 ve toplam load of the outputs the basic device maks. 240 W

supplied active power typical480 W

at short-circuit during operation typical60 A; only in operation without CNX8600 extension module

at short-circuit during operation25 ms

bridging of equipmentVar; suitable output characteristics via DIP switch can be selected

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent93 %

at rated output voltage for rated value of the output current typical34 W

during no-load operation maximum12 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical0,4 %

maximum10 ms

protection and monitoring

design of the overvoltage protectionmaks. 35 V (maks. 500 ms)

property of the output short-circuit proofVar

design of short-circuit protectionElectronic overload shutdown; optional constant-current operation can be selected via DIP switch

adjustable current response value current of the current-dependent overload release2... 20 A

type of response value settingvia potentiometer veya IE/PN interface

of the excess currentIa >1.0...<1,5 x Ia threshold for 5 s permissible; Ia limit (= 1,5 x Ia threshold) for 200 ms permissible

of the current limitationIa limit (= 1,5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous

in normal operationTotal system overloadable 150% Ia rated to 5 s/min

display version for overload and short circuit3-color LED for operating state device; 3-color LED for operating state output

design of the reset device/resetting mechanismvia sensor veya IE/PN interface

remote reset functionnon-isolated 24 V input (signal level "high" > 15 V)

interfaces

product function communication functionVar

design of the interfaceEthernet/PROFINET

design of the interface PROFINET protocolVar

OPC UAVar

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

EAC approvalVar

NEC Class 2Yok

SEMI F47Var

BISVar; R-41188271

CB-certificateVar

MTBF at 40 °C298.979 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Var

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total904,9 kg

during manufacturing43,1 kg

during operation861 kg

after end of life0,36 kg

ambient conditions

during operation-25... +60 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionPlug-in terminals with screwed connection

at inputL1, L2, L3, PE: Plug-in terminal with 1 screwed connection her biri for 0,2... 4 mm² single-wire / fine stranded

at outputOutput: plug-in terminals with 2 screw connectors for 0,2... 4 mm²; 0 V: screw terminal with 3 screw connectors for 0,2... 4 mm²

for auxiliary contactsRST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0,2... 1,5 mm²

for signaling contact11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection her biri for 0,2... 1,5 mm²

removable terminal at inputVar

removable terminal at outputVar

design of the interface for communicationPROFINET/Ethernet: two RJ45 sockets (2-port switch)

suitability for interaction modular systemVar

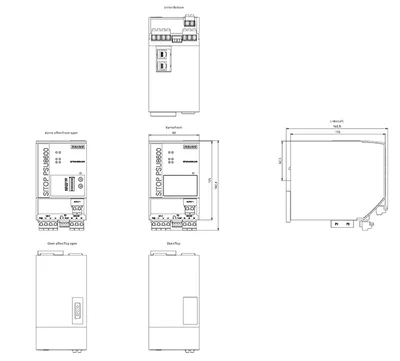

mechanical data

width × height × depth of the enclosure80 × 125 × 150 mm

installation width × mounting height80 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight1,8 kg

accessories

electrical accessoriesExpansion modules CNX8600, buffer modules BUF8600, module UPS8600

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing43,1 kg

global warming potential [CO2 eq] / during operation861 kg

global warming potential [CO2 eq] / after end of life0,36 kg

global warming potential [CO2 eq] / total904,9 kg

Aksesuarlar 31

Siemens 6EP3436-8SB00-2AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4437-7FB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3DX0	Aksesuar · Selectivity module
6EP4231-7HB00-0AX0	Aksesuar · Buffer module · #NO_DATA#
6EP4347-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP1933-2EC41	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1961-2BA11	Aksesuar · Selectivity module
6EP1961-2BA21	Aksesuar · Selectivity module
6EP1961-2BA31	Aksesuar · Selectivity module
6EP1961-2BA41	Aksesuar · Selectivity module
6EP1961-2BA51	Aksesuar · Selectivity module
6EP4437-7FB00-3CX0	Aksesuar · Selectivity module
6EP4438-7FB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3CX0	Aksesuar · Selectivity module
6EP4438-7EB00-3DX0	Aksesuar · Selectivity module
6EP4437-8FB00-4CY0	Aksesuar · Selectivity system
6EP1961-3BA01	Aksesuar · Buffer module · #NO_DATA#
6EP1962-2BA00	Aksesuar · Redundancy module · #NO_DATA#
6EP1961-3BA21	Aksesuar · Redundancy module · #NO_DATA#
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
6EP1933-2EC51	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4346-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP4134-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1961-2BA00	Aksesuar · Diagnosis module · #NO_DATA#
6EP1935-5PG01	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP1964-2BA00	Aksesuar · Redundancy module · #NO_DATA#
