Siemens 6EP4136-3AB00-2AY0 için nasıl fiyat teklifi alabilirim?

Siemens 6EP4136-3AB00-2AY0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02C8B50 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP4136-3AB00-2AY0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP4136-3AB00-2AY0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP4136-3AB00-2AY0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

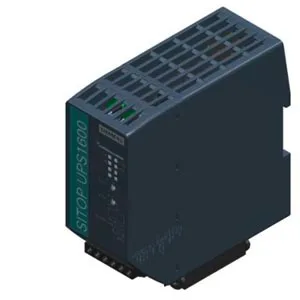

Siemens 6EP4136-3AB00-2AY0

SITOP UPS1600 20 A Ethernet/ PROFINET uninterruptible güç kaynağı ile Ethernet / PROFINET arayüz / OPC UA server / web server giriş: 24 V DC çıkış: 24 V DC/20 A

SiemensMFR # 6EP4136-3AB00-2AY0SKU # CEY-8EF3B02C8B50

product brand nameSITOP

product type designationUPS1600

type of current supplyDC UPS 24 V/20 A

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21... 29 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP UPS1600 20 A Ethernet/ PROFINET uninterruptible güç kaynağı ile Ethernet / PROFINET arayüz / OPC UA server / web server giriş: 24 V DC çıkış: 24 V DC/20 A

Siemens 6EP4136-3AB00-2AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationUPS1600

type of current supplyDC UPS 24 V/20 A

input

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21... 29 V

adjustable response value voltage for buffer connection preset21,5 V

adjustable response value voltage for buffer connection21... 25 V; Adjustable: 21 V, 21,5 V, 22 V, 22,5 V, 23 V, 24 V, 25 V DC veya via software

input current at rated input voltage 24 V rated value25 A; for maks. charging current (4 A)

memory

type of energy storagewith batteries

product function DC-UPS modularly expandableVar

design of the mains power cut bridging-connectionAdjustable range using rotary coding switch: 0,5 min, 1 min, 2 min, 5 min, 10 min, 20 min, maks. buffering time veya via software

output

in normal operation at DC rated value24 V

in buffering mode at DC rated value24 V

formula for output voltageVin - yaklaşık 0,2 V

startup delay time typical60 ms

voltage increase time of the output voltage typical60 ms

output voltage in buffering mode at DC18,5... 27 V

rated value20 A

in normal operation0... 60 A

in buffering mode0... 60 A

peak current60 A

property of the output short-circuit proofVar

design of short-circuit protectionLimitation to 3 x I rated for 30 ms/min; through-conductivity for 1,5 x I rated for 5 sec/min

charging current0,1 A, 4 A

efficiency

at rated output voltage for rated value of the output current typical97,5 %

in case of operation on rechargeable battery typical97,5 %

at rated output voltage for rated value of the output current typical11 W

in case of operation on rechargeable battery typical11 W

supplied active power typical480 W

protection and monitoring

reverse polarity protection against energy storage unit polarity reversalVar

reverse polarity protection against input voltage polarity reversalVar

for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with yaklaşık 0,25 Hz, floating changeover contact "Alarm/Bat" switching with yaklaşık 0,25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A veya AC 30 V /1 A

in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20,4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed

interfaces

product component PC interfaceVar

product function communication functionVar

design of the interfaceEthernet/PROFINET

number of interfaces according to PROFINET2

safety

galvanic isolation between input and outputYok

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

UKCA markingVar

EAC approvalVar

type of certification CB-certificateVar

MTBF at 40 °C345.056 h

standards, specifications, approvals hazardous environments

ATEXYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

Det Norske Veritas (DNV)Var

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total297,8 kg

during manufacturing18,5 kg

during operation278,9 kg

after end of life0,34 kg

ambient conditions

during operation-25... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

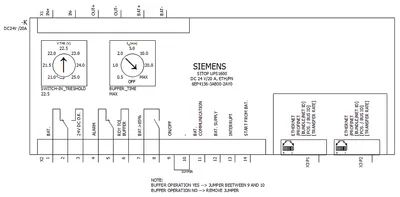

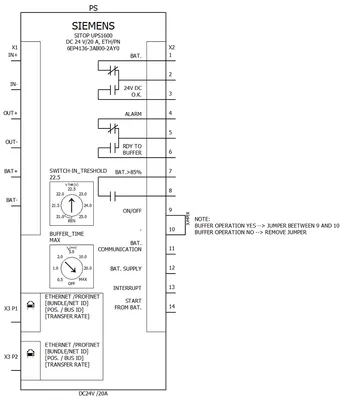

connection method

type of electrical connectionscrew terminal

at input24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

at output24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

for rechargeable battery module24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

for control circuit and status message14 screw terminals for 0,2... 1,5 mm²/24... 16 AWG

mechanical data

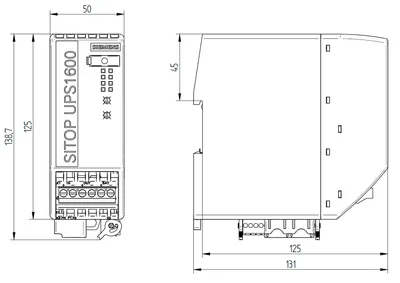

width × height × depth of the enclosure50 × 139 × 125 mm

installation width × mounting height50 mm × 239 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,45 kg

accessories

electrical accessoriesBattery module

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Aksesuarlar 10

Siemens 6EP4136-3AB00-2AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4133-0GA00-0AY0	Aksesuar · Battery module
6EP4134-0JA00-0AY0	Aksesuar · Battery module
6EP4135-0GE00-0AY0	Aksesuar · Battery module
6EP4137-0GE00-0AY0	Aksesuar · Battery module
6EP4134-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
6EP4135-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
6EP4136-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP4134-0JA00-0AY0-Z	Aksesuar
6EP4134-0GB00-0AY0	Aksesuar · Battery module
