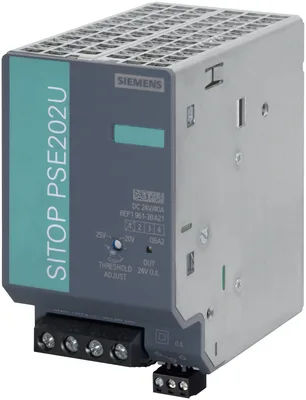

Siemens 6EP1961-3BA21
SITOP PSE202U redundancy modül giriş/çıkış: 24 V DC/40 A suitable için decoupling two SITOP güç supplies ile maximal per 20 A çıkış akım
product brand nameSITOP
product type designationPSE202U
product designationRedundancy module
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC24 V
Ürün Hakkında
SITOP PSE202U redundancy modül giriş/çıkış: 24 V DC/40 A suitable için decoupling two SITOP güç supplies ile maximal per 20 A çıkış akım
Siemens 6EP1961-3BA21
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSE202U
product designationRedundancy module
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC24 V
input voltage at DC24... 28,8 V
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
output voltage at DC rated value24 V
formula for output voltageVin - yaklaşık 0,5 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableYok
display version for normal operationGreen LED for "both Input voltages > switching threshold"; red LED: for " least one input voltage < switching threshold"
type of signal at outputIsolated relay contact (changeover contacts, rating 8 A/240 V AC, 24 V DC): Signals OK if both input voltages > switching threshold, setting range of threshold 20... 25 V
rated value40 A
rated range40 A; maks. aggregate current 40 A; +60... +70 °C: derating 3%/K
efficiency
efficiency in percent96,6 %
at rated output voltage for rated value of the output current typical34 W
during no-load operation maximum1,5 W
safety
galvanic isolation between input and outputYok
galvanic isolationrelay contact: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass III
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
NEC Class 2Yok
CB-certificateYok
MTBF at 40 °C6.471.654 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total954,1 kg
during manufacturing21,8 kg
during operation931,6 kg
after end of life0,51 kg
ambient conditions
during operation-25... +60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at inputInput, output ve ground: 1 screw terminal her biri for 0,33... 10 mm² single-core/finely stranded
for auxiliary contactsRelay contact: 3 screw terminals for 0,5... 2,5 mm² single-core/finely stranded
mechanical data
width × height × depth of the enclosure70 × 125 × 120 mm
installation width × mounting height70 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,5 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing21,8 kg
global warming potential [CO2 eq] / during operation931,6 kg
global warming potential [CO2 eq] / after end of life0,51 kg
global warming potential [CO2 eq] / total954,1 kg
