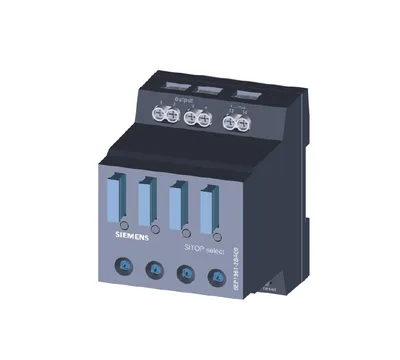

Siemens 6EP1961-2BA00
SITOP select diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A
product brand nameSITOP
product type designationselect
product designationSITOP Selectivity module
type of current supplyDiagnosis module, 4 x 10 A
supply voltage at DC rated value24 V
input voltage at DC22... 30 V
Ürün Hakkında
SITOP select diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A
Siemens 6EP1961-2BA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationselect
product designationSITOP Selectivity module
type of current supplyDiagnosis module, 4 x 10 A
input
type of the power supply networkControlled DC voltage (SITOP select is not designed for operation with DC UPS module 40 A (6EP1 931-2FC21/-2FC42)
supply voltage at DC rated value24 V
input voltage at DC22... 30 V
overvoltage overload capability35 V; 100 ms
input current at rated input voltage 24 V rated value40 A
output
voltage curve at outputcontrolled DC voltage
formula for output voltageVin - yaklaşık 0,3 V
relative overall tolerance of the voltage noteIn accordance with the supplying input voltage
number of outputs4
output current up to 60 °C per output rated value10 A
adjustable current response value current of the current-dependent overload release2... 10 A
type of response value settingvia potentiometer
response delay maximum5 s
product feature parallel switching of outputsYok
type of outputs connectionSimultaneous connection of all outputs after power up of the supply voltage, delay time of 24 ms veya 100 ms programmable for sequential connection
efficiency
efficiency in percent97 %
power loss [W] at rated output voltage for rated value of the output current typical30 W
switch-off characteristic
of the excess currentIout = 1,0...1.3 x set value, switch-off after yaklaşık 5 s
of the current limitationIout = 1,3 x set value, switch-off after yaklaşık 50... 100 ms
of the immediate switch-offIout > set value ve Vin < 20 V, switch-off after yaklaşık 0,5 ms
residual current at switch-off typical20 mA
design of the reset device/resetting mechanismUsing keys on the module
remote reset function-
protection and monitoring
fuse protection type at inputBlade-type fuse per output (equipped when delivered with 15 A fuse)
display version for normal operationTwo-color LED per output: green LED for "Output switched through"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling functionCommon signal contact (NO contact, rating 0,5 A/24 V DC)
safety
galvanic isolation between input and output at switch-offYok
standard for safetyaccording to EN 62368-1
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1) File E197259
UKCA markingVar
EAC approvalVar
CB-certificateVar
MTBF at 40 °C616.675 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
ambient conditions
during operation0... 60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at input+24 V: 2 screw terminals for 0,5... 16 mm²; 0 V: 2 screw terminals for 0,5... 4 mm²
at outputOutput 1... 4: 1 screw terminal her biri for 0,22... 4 mm²
for auxiliary contacts-
for signaling contact2 screw terminals for 0,22... 4 mm²
mechanical data

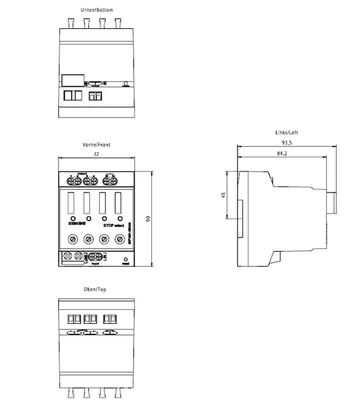

width × height × depth of the enclosure72 × 90 × 90 mm
installation width × mounting height72 mm × 190 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,4 kg
accessories
product component included4x blade-type fuse 15 A
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
