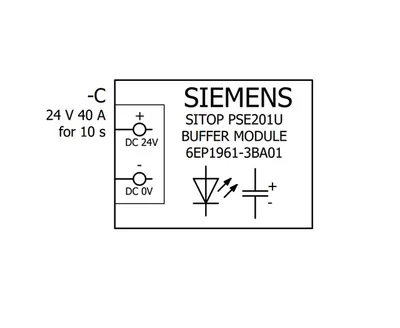

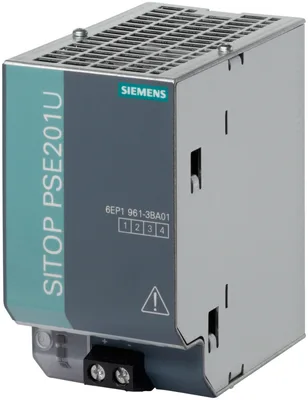

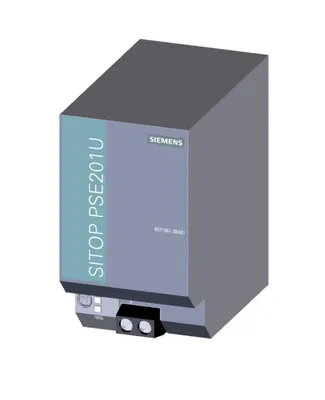

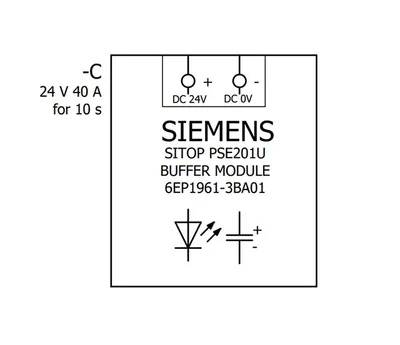

Siemens 6EP1961-3BA01
SITOP PSE201U buffer module buffer time 100 ms to 10 s depending on load current
product brand nameSITOP
product type designationPSE201U
type of current supplyBuffer module
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC24... 28,8 V
Ürün Hakkında
SITOP PSE201U buffer module buffer time 100 ms to 10 s depending on load current
Siemens 6EP1961-3BA01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSE201U
type of current supplyBuffer module
input
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC24... 28,8 V
memory
design of the mains power cut bridging-connectionBackup time: with 40 A load current: 200 ms; with 20 A load current: 400 ms; with 10 A load current: 800 ms; with 5 A load current: 1,6 s. Reduces the backup time by 100 ms in combination with 6EP1 437-3BA10. Maximum backup time 100 ms in combination with 6EP1 336-2BA10 (load current 20 A).
buffering time in the event of power failure0,16 min
output
formula for output voltageVin - yaklaşık 1 V
rated value40 A
protection and monitoring
for normal operationGreen LED for "supply voltage > 20,5 V"
interfaces
product component PC interfaceYok
product function communication functionYok
design of the interfacewithout
safety
galvanic isolation between input and outputVar
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
SEMI F47Var
type of certification CB-certificateVar
MTBF at 40 °C2.538.071 h
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total64,9 kg
during manufacturing20,8 kg
during operation43,2 kg
after end of life0,39 kg
ambient conditions
during operation-25... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at input+: 1 screw terminal for 0,5... 10 mm²
at output-: 1 screw terminal for 0,5... 10 mm²

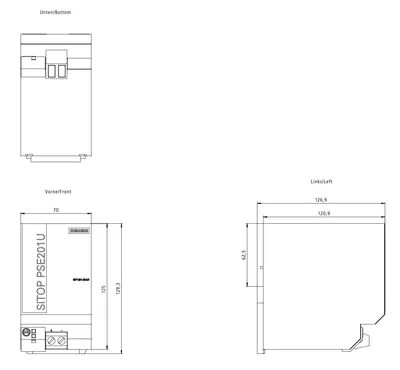

mechanical data
width × height × depth of the enclosure70 × 125 × 121 mm
installation width × mounting height70 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,2 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
