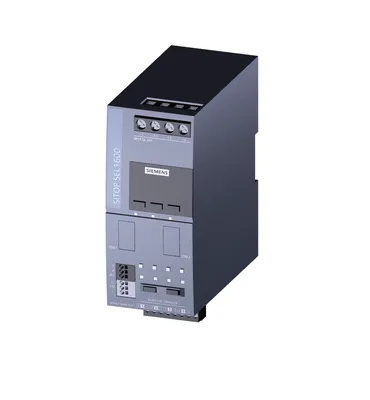

Siemens 6EP4437-8FB00-4CY0

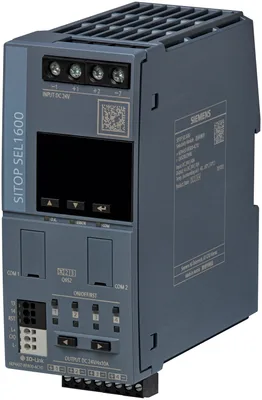

SITOP SEL1600 4x10 A IOL temel modül 4-channel giriş: 24 V DC/40 A çıkış: 24 V DC/4x 10 A setting range: 0.5-10 A ile IO-Link arayüz
product brand nameSITOP
product type designationSEL1600
product designationSITOP Selectivity module
type of the power supply networkControlled DC voltage
supply voltage at DC rated value24 V
input voltage at DC20,4... 30 V
Ürün Hakkında
SITOP SEL1600 4x10 A IOL temel modül 4-channel giriş: 24 V DC/40 A çıkış: 24 V DC/4x 10 A setting range: 0.5-10 A ile IO-Link arayüz
Siemens 6EP4437-8FB00-4CY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationSEL1600
product designationSITOP Selectivity module
type of current supplyselectivity module, 4 x 10 A, basic module with IO-Link interface
input
type of the power supply networkControlled DC voltage
supply voltage at DC rated value24 V
input voltage at DC20,4... 30 V
overvoltage overload capability35 V
input current at rated input voltage 24 V rated value40 A; with expansion module maks. 60 A
output
voltage curve at outputcontrolled DC voltage
formula for output voltageUe - yaklaşık 0,25 V
relative overall tolerance of the voltage noteIn accordance with the supplying input voltage
number of outputs4; expandable up to 40 outputs via expansion modules
output current up to 60 °C per output rated value10 A; +60... +70 °C: Derating 2%/K
adjustable current response value current of the current-dependent overload release0,5... 10 A
type of response value settingvia display ve IO-Link interface
response delay maximum10 s
product feature parallel switching of outputsVar; Two outputs located next to her biri other within one module
type of outputs connectionswitch-on of all outputs after power-up of the supply voltage > 20 V, for sequential switch-on, delay time of 25 ms, 100 ms, veya "load-optimized" configurable via display ve IO-Link interface, user-defined times can be configured via IO-Link interface
efficiency
efficiency in percent98 %
power loss [W] at rated output voltage for rated value of the output current typical10 W
switch-off characteristic
of the excess currentswitch-off characteristic selectable: Ia = 1,0... 1,25 x set value, shutdown after tipik 10 s; Ia = 1,0... 1,5 x set value, shutdown after tipik 5 s; Ia = 1,0... 1,7 x set value, shutdown after tipik 1 s
of the current limitationIa = 1,8 x set value, switch-off after tipik 10-100 ms
of the immediate switch-offIout > set value ve Vin < 20 V, switch-off after yaklaşık 0,5 ms
design of the reset device/resetting mechanismvia buttons for her biri output ve IO-Link interface
remote reset functionnon-isolated 24 V input (signal level "high" > 15 V)
protection and monitoring
fuse protection type at input15 A per output (not accessible)
display version for normal operationdisplay ve 3-color LEDs her biri for operational, fault ve communication status as well as 3-color LEDs per output
design of the switching contact for signaling functionisolated common signaling contact (NO contact), contact rating capacity 30 V/0,1 A
interfaces
product function communication functionVar
design of the interfaceIO-Link
protocol is supported IO-Link protocolVar
IO-Link transfer rateCOM3 (230,4 kBaud)
number of IO-Link ports1
point-to-point cycle time between master and IO-Link device minimum5 ms
of the address range of the outputs with cyclical transfer for all IO-Link ports maximum25 bayt
of the address range of the inputs with cyclical transfer for all IO-Link ports maximum29 bayt
protocol between master and IO-Link device Version 1.1Var
safety
galvanic isolation between input and output at switch-offYok
standard for safetyaccording to EN 62368-1
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 61000-6-3
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1) File E197259
UKCA markingVar
CB-certificateVar
MTBF at 40 °C360.000 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total298,9 kg
during manufacturing24,2 kg
during operation274 kg
after end of life0,56 kg
ambient conditions
during operation-40... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionScrew-type terminals ve Push-in
at input-1, +1, +2, -2: one screw terminal her biri for 0,5... 16 mm²
at output+, -: her biri output 1 common screw plug-in terminal for 0,5... 2,5 mm²
for auxiliary contactsRST: push-in for 0,5... 1,5 mm²
for signaling contact13, 14: a push-in terminal her biri for 0,5... 1,5 mm²
removable terminal at inputYok
removable terminal at outputVar
design of the interface for communicationL+, C/Q, L- (IO-Link): 1 push-in terminal her biri for 0,2... 1,5 mm²
mechanical data

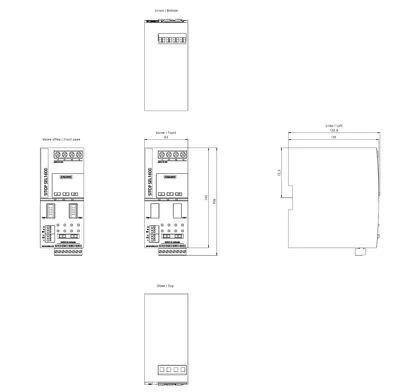

width × height × depth of the enclosure63 × 145 × 125 mm
installation width × mounting height63 mm × 225 mm
top40 mm
bottom40 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,4 kg
accessories
electrical accessories6EP4990-8KK10-0XU0: SITOP SEL1600 Connection Set for connection to PSU8400 20A, contents: COM connecting cable ve input wiring bracket; 6EP4990-8KK20-0XU0: SITOP SEL1600 Connection Set for connection to PSU8400 40A, contents: COM connecting cable ve input wiring bracket; 6EP4990-8KK30-0XU0: SITOP SEL1600 Connection Set for connection of two power supplies PSU8400, contents: 2x short ve 1x long COM connecting cable
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
