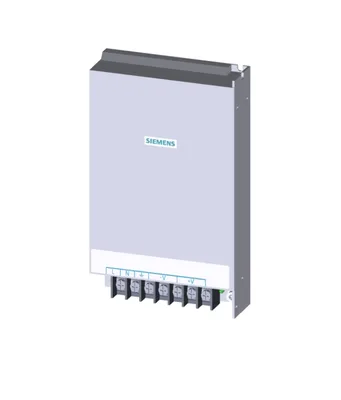

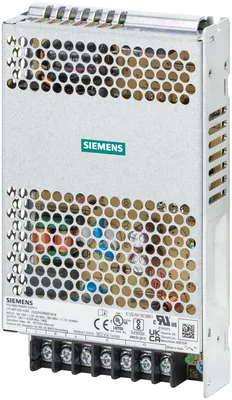

Siemens 6EP1333-1LD01

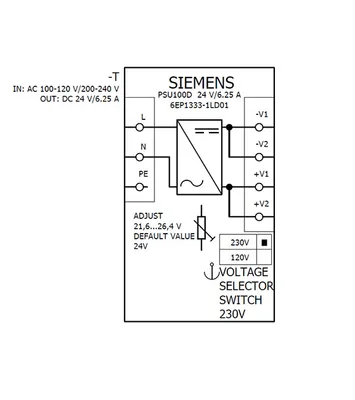

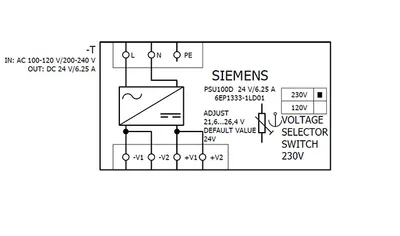

PSU100D 24 V/6.25 A stabilized power supply input: 100-120 V/200-240 V AC output: 24 V DC/6.25 A
product brand nameSITOP
product type designationPSU100D
product designationPower supply SITOP
type of current supply24 V/6,25 A
type of the power supply network1-phase AC
phase number1
Ürün Hakkında
PSU100D 24 V/6.25 A stabilized power supply input: 100-120 V/200-240 V AC output: 24 V DC/6.25 A
Siemens 6EP1333-1LD01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU100D
product designationPower supply SITOP
type of current supply24 V/6,25 A
input
type of the power supply network1-phase AC
phase number1
voltage curve at inputAC
supply voltage 1 at AC100... 120 V
supply voltage 2 at AC200... 240 V
input voltage 1 at AC90... 132 V
input voltage 2 at AC180... 264 V
at 50 Hz240 V
at 60 Hz100 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
overvoltage overload capability1,25 × Vin rated, 500 ms
buffering time for rated value of the output current in the event of power failure minimum30 ms
operating condition of the mains bufferingVin = 115/230 V
at rated input voltage 100 V3 A
at rated input voltage 240 V1,6 A
current limitation of inrush current at 25 °C maximum60 A
I2t value maximum1,5 A²·s
fuse protection typeT4AL250V (internal)
fuse protection type in the feederRecommended miniature circuit breaker: from 16 A characteristic B, from 20 A characteristic B (for North America)
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage21,6... 26,4 V
relative overall tolerance of the voltage1 %
on slow fluctuation of input voltage0,5 %
on slow fluctuation of ohm loading0,5 %
maximum200 mV
display version for normal operationGreen LED for 24 V OK
behavior of the output voltage when switching onOvershoot of Vout < 10 %
response delay maximum0,5 s
maximum30 ms
rated value6,25 A
rated range0... 6,25 A; +50... +70 °C: Derating 2,0%/K
supplied active power typical150 W
bridging of equipmentYok
efficiency
efficiency in percent89 %
at rated output voltage for rated value of the output current typical18 W
closed-loop control
relative control precision of the output voltage load step of resistive load 50/100/50 % typical10 %
load step 50 to 100% typical4 ms
load step 100 to 50% typical4 ms
protection and monitoring
design of the overvoltage protection< 33,6 V
property of the output short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
response value current limitation6,88... 10,94 A
typical9 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum0,5 mA
EMC
for emitted interferenceEN 55032 Class B
for mains harmonics limitationIEC 61000-3-2 Class A
for interference immunityEN 55035
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273
UKCA markingVar
EAC approvalYok
NEC Class 2Yok
BISVar; R-61003204
CB-certificateVar
MTBF at 25 °C700.000 h; according to SR-332, 100% full load (24 V, 6,25 A), input voltage: 115 V / 230 V AC
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total570,3 kg
during manufacturing7,1 kg
during operation563 kg
after end of life0,11 kg
ambient conditions
during operation-25... +70 °C; with natural convection; The device is not recommended to be placed on low thermal conductive surface (e. g. plastics).
during transport-40... +85 °C
during storage-40... +85 °C
relative humidity with condensation according to IEC 60068-2-38 maximum20... 90% without condensation
connection method
type of electrical connectionscrew terminal
at inputL, N, PE: 1 screw terminal her biri for 0,75... 2 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,75... 2 mm²
for auxiliary contacts-
mechanical data

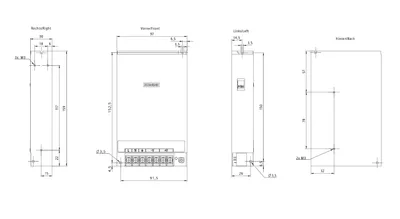

width × height × depth of the enclosure97 × 30 × 159 mm
fastening methodWall mounting
DIN-rail mountingYok
S7 rail mountingYok
wall mountingVar
net weight0,36 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing7,1 kg
global warming potential [CO2 eq] / during operation563 kg
global warming potential [CO2 eq] / after end of life0,11 kg
global warming potential [CO2 eq] / total570,3 kg
