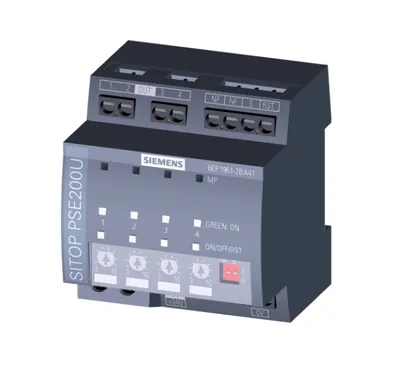

Siemens 6EP1961-2BA41
SITOP PSE200U 10 A selectivity module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 3-10 A with status message for each output
product brand nameSITOP
product type designationPSE200U
product designationSITOP Selectivity module
type of the power supply networkControlled DC voltage
supply voltage at DC rated value24 V
input voltage at DC22... 30 V
Ürün Hakkında
SITOP PSE200U 10 A selectivity module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 3-10 A with status message for each output
Siemens 6EP1961-2BA41
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSE200U
product designationSITOP Selectivity module
type of current supplySelectivity module, 4 x 10 A Single-channel signaling
input
type of the power supply networkControlled DC voltage
supply voltage at DC rated value24 V
input voltage at DC22... 30 V
overvoltage overload capability35 V
input current at rated input voltage 24 V rated value40 A
output
voltage curve at outputcontrolled DC voltage
formula for output voltageVin - yaklaşık 0,2 V
relative overall tolerance of the voltage noteIn accordance with the supplying input voltage
number of outputs4
output current up to 60 °C per output rated value10 A
adjustable current response value current of the current-dependent overload release3... 10 A
type of response value settingvia potentiometer
response delay maximum5 s
product feature parallel switching of outputsYok
type of outputs connectionsimultaneous switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 100 ms, veya "load-optimized" via DIP switch configurable for sequential switch-on
efficiency
efficiency in percent99 %
power loss [W] at rated output voltage for rated value of the output current typical10 W
switch-off characteristic
of the excess currentIout = 1,0...1.5 x set value, switch-off after yaklaşık 5 s
of the current limitationIout = 1,5 x set value, switch-off after tipik 100 ms
of the immediate switch-offIout > set value ve Vin < 20 V, switch-off after yaklaşık 0,5 ms
residual current at switch-off typical1 mA
design of the reset device/resetting mechanismvia sensor per output
remote reset functionnon-isolated 24 V input (signal level "high" > 15 V)
protection and monitoring
fuse protection type at input15 A per output (not accessible)
display version for normal operationThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling functionStatus signal output (pulse/pause signal, can be evaluated via Simatic function block)
safety
galvanic isolation between input and output at switch-offYok
standard for safetyaccording to EN 62368-1
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1) File E197259
UKCA markingVar
EAC approvalVar
CB-certificateVar
MTBF at 40 °C540.979 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total283 kg
during manufacturing8,7 kg
during operation274 kg
after end of life0,2 kg
Siemens eco profile (SEP)Siemens EcoTech
ambient conditions
during operation-25... +60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at input+24 V: 2 screw terminals for 0,5... 16 mm²; 0 V: 2 screw terminals for 0,5... 4 mm²
at outputOutput 1... 4: 1 screw terminal her biri for 0,5... 4 mm²
for auxiliary contactsRemote reset: 1 screw terminal for 0,5... 4 mm²
for signaling contact1 screw terminal for 0,5... 4 mm²
mechanical data

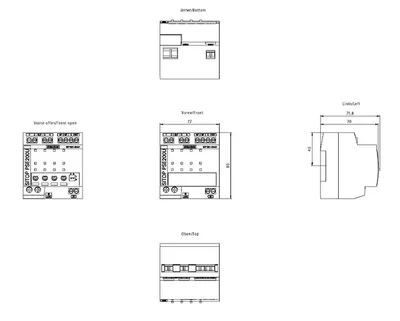

width × height × depth of the enclosure72 × 80 × 72 mm
installation width × mounting height72 mm × 180 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,2 kg
accessories
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
