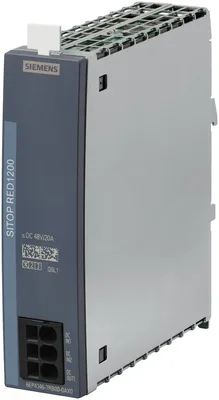

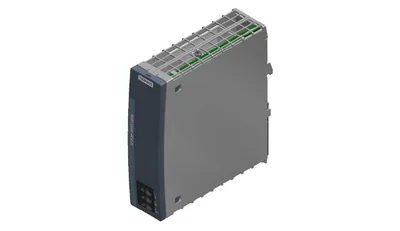

Siemens 6EP4346-7RB00-0AX0
SITOP RED1200 redundancy module Input/output: 24/48 V DC/20 A Suitable for decoupling two SITOP power supplies with max. 10 A output current each
product brand nameSITOP
product type designationRED1200
product designationRedundancy module
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC12... 48 V
Ürün Hakkında
SITOP RED1200 redundancy module Input/output: 24/48 V DC/20 A Suitable for decoupling two SITOP power supplies with max. 10 A output current each
Siemens 6EP4346-7RB00-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationRED1200
product designationRedundancy module
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC12... 48 V
input voltage at DC10... 58 V
output
voltage curve at outputControlled DC voltage
number of outputs1
output voltage at DC rated value24 V
formula for output voltageVin - yaklaşık 0,6 V
at output 1 at DC rated value24 V
at output 1 at DC12... 48 V
output voltage adjustableYok
rated value20 A
bridging of equipmentYok
efficiency
efficiency in percent97,5 %
at rated output voltage for rated value of the output current typical12 W
during no-load operation maximum0,1 W
safety
galvanic isolation between input and outputYok
operating resource protection classClass III
protection class IPIP20
EMC
for emitted interferenceEN 61000-6-3
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
NEC Class 2Yok
MTBF at 40 °C8.100.000 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total349,9 kg
during manufacturing20,5 kg
during operation328,8 kg
after end of life0,48 kg
ambient conditions
during operation-40... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionpush-in terminals

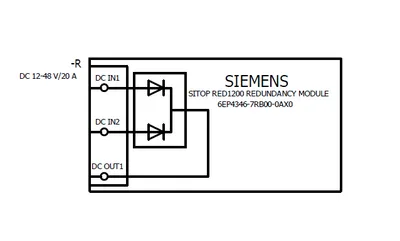

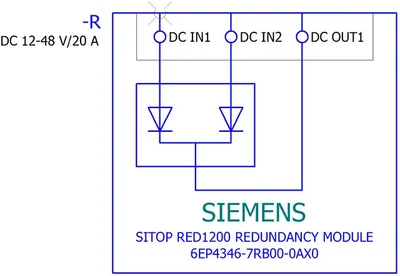

at inputIn1, In2: her biri for 0,2... 10 mm²
at outputOut1: 0,2... 10 mm²
mechanical data

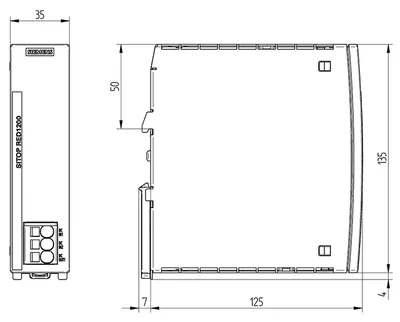

width × height × depth of the enclosure35 × 135 × 125 mm
installation width × mounting height35 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,47 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing20,5 kg
global warming potential [CO2 eq] / during operation328,8 kg
global warming potential [CO2 eq] / after end of life0,48 kg
global warming potential [CO2 eq] / total349,9 kg
