Siemens 6EP1331-1LD01 için nasıl fiyat teklifi alabilirim?

Siemens 6EP1331-1LD01 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSI5WBHETXBHP9 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP1331-1LD01 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP1331-1LD01 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP1331-1LD01 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

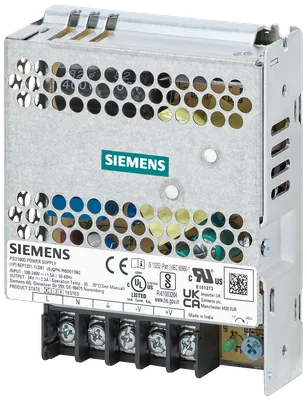

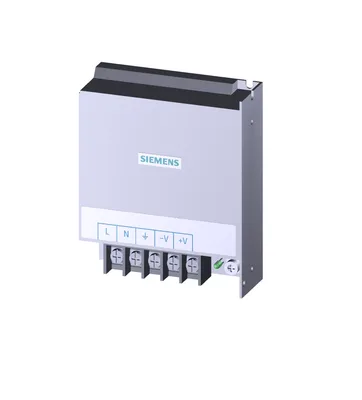

Siemens 6EP1331-1LD01

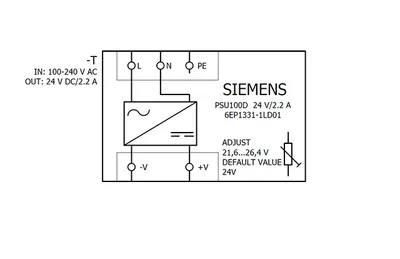

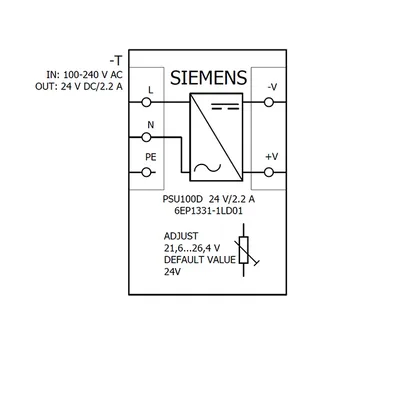

PSU100D 24 V/2.2 A stabilized power supply input: 100-240 V AC output: 24 V DC/2.2 A

SiemensMFR # 6EP1331-1LD01SKU # YLSI5WBHETXBHP9

product brand nameSITOP

product type designationPSU100D

product designationPower supply SITOP

type of current supply24 V/2,2 A

type of the power supply network1-phase AC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

PSU100D 24 V/2.2 A stabilized power supply input: 100-240 V AC output: 24 V DC/2.2 A

Siemens 6EP1331-1LD01

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU100D

product designationPower supply SITOP

type of current supply24 V/2,2 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

minimum rated value100 V

maximum rated value240 V

initial value90 V

full-scale value264 V

at 50 Hz240 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

overvoltage overload capability1,25 × Vin rated, 500 ms

buffering time for rated value of the output current in the event of power failure minimum12 ms

operating condition of the mains bufferingVin = 115/230 V

at rated input voltage 100 V1,2 A

at rated input voltage 240 V0,7 A

current limitation of inrush current at 25 °C maximum45 A

I2t value maximum2 A²·s

fuse protection typeT3.15AL250V (internal)

fuse protection type in the feederRecommended miniature circuit breaker: from 16 A characteristic B, from 20 A characteristic B (for North America)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage21,6... 26,4 V

relative overall tolerance of the voltage1 %

on slow fluctuation of input voltage0,5 %

on slow fluctuation of ohm loading0,5 %

maximum150 mV

display version for normal operationGreen LED for 24 V OK

behavior of the output voltage when switching onOvershoot of Vout < 10 %

response delay maximum1 s

maximum30 ms

rated value2,2 A

rated range0... 2,2 A; +50... +70 °C: Derating 2,0%/K

supplied active power typical50 W

bridging of equipmentYok

efficiency

efficiency in percent88 %

at rated output voltage for rated value of the output current typical7,1 W

closed-loop control

relative control precision of the output voltage load step of resistive load 50/100/50 % typical10 %

load step 50 to 100% typical4 ms

load step 100 to 50% typical4 ms

protection and monitoring

design of the overvoltage protection< 33,6 V

property of the output short-circuit proofVar

design of short-circuit protectionElectronic shutdown, automatic restart

response value current limitation2,42... 3,85 A

typical5 A

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum0,5 mA

EMC

for emitted interferenceEN 55032 Class B

for mains harmonics limitationIEC 61000-3-2

for interference immunityEN 55035

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273

UKCA markingVar

EAC approvalYok

NEC Class 2Yok

BISVar; R-61003204

CB-certificateVar

MTBF at 25 °C700.000 h; according to SR-332, 100% full load (24 V, 2,2 A), input voltage: 115 V / 230 V AC

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalYok

American Bureau of Shipping Europe Ltd. (ABS)Yok

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Yok

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total225,7 kg

during manufacturing3,6 kg

during operation222,1 kg

after end of life0,05 kg

ambient conditions

during operation-25... +70 °C; with natural convection; The device is not recommended to be placed on low thermal conductive surface (e. g. plastics).

during transport-40... +85 °C

during storage-40... +85 °C

relative humidity with condensation according to IEC 60068-2-38 maximum20... 90% without condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal her biri for 0,75... 2 mm² single-core/finely stranded

at output+, -: 1 screw terminal her biri for 0,75... 2 mm²

for auxiliary contacts-

mechanical data

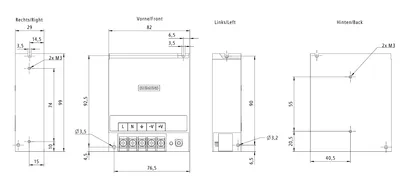

width × height × depth of the enclosure82 × 29 × 99 mm

fastening methodWall mounting

DIN-rail mountingYok

S7 rail mountingYok

wall mountingVar

net weight0,18 kg

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing3,6 kg

global warming potential [CO2 eq] / during operation222,1 kg

global warming potential [CO2 eq] / after end of life0,05 kg
