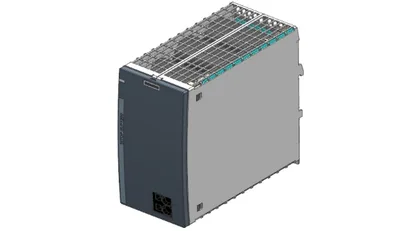

Siemens 6EP4231-7HB00-0AX0
SITOP BUF1200 buffer modül Buffer time 300 ms at 40 A Buffer t. depends on load akım DC giriş 24 V
product brand nameSITOP
product type designationBUF1200
type of current supply300 ms/40 A
voltage curve at inputDC
supply voltage at DC rated value24 V
supply voltage at DC24... 28 V
Ürün Hakkında
SITOP BUF1200 buffer modül Buffer time 300 ms at 40 A Buffer t. depends on load akım DC giriş 24 V
Siemens 6EP4231-7HB00-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBUF1200
type of current supply300 ms/40 A
input
voltage curve at inputDC
supply voltage at DC rated value24 V
supply voltage at DC24... 28 V
input voltage at DC20... 30 V
memory
design of the mains power cut bridging-connectionModule for buffering during short power interruptions; parallel connection the output of 24 V power supplies. Buffer time of 300 ms 40 A up to 2,4 s 5 A load current; multiplication possible by parallel connection
buffering time in the event of power failure0,3 min
output
rated value40 A
protection and monitoring
for normal operationLED green for "buffer standby exist"
interfaces
product component PC interfaceYok
product function communication functionYok
design of the interfacewithout
safety
galvanic isolation between input and outputVar
operating resource protection classClass III
protection class IPIP20
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
SEMI F47Var
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var; in preparation
Det Norske Veritas (DNV)Var; in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total68,8 kg
during manufacturing19 kg
during operation49,1 kg
after end of life0,36 kg
ambient conditions
during operation-40... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at input+: push-in for 0,75... 16 mm²
at output-: push-in for 0,5... 6 mm²
mechanical data

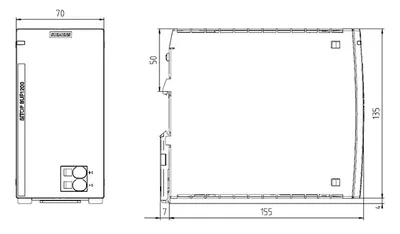

width × height × depth of the enclosure70 × 135 × 155 mm
installation width × mounting height70 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,2 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
