Festo
SLM-12- -KF-A 32781
MFR #SLM-12- -KF-A
SKU #YLSJUGDEFECDIEK
Photo may not represent actual item. Refer to name and product specs for all details.

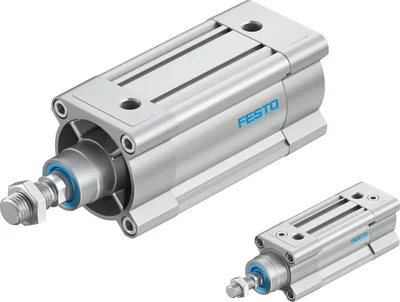

Festo DSBC-...-125- -
ISO cylinder. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. ISO 15552 (ISO 6431, VDMA 24562). Sustainable thanks to extended life cycle and easier repairs. Standard profile with two sensor slots. Wide range of variants for customised applications. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries
Stroke1, 2800
Piston diameter125 mm
Piston rod threadM16
Based on standardISO 15552
Mounting positionAny
Conforms to standardISO 15552
About This Product
ISO cylinder. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. ISO 15552 (ISO 6431, VDMA 24562). Sustainable thanks to extended life cycle and easier repairs. Standard profile with two sensor slots. Wide range of variants for customised applications. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries
Festo DSBC-...-125- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke1, 2800
Piston diameter125 mm
Piston rod threadM16
Based on standardISO 15552
CushioningElastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends
Mounting positionAny
Conforms to standardISO 15552
Piston-rod endMale thread, Female thread
DesignPiston, Piston rod, Profile barrel
Position detectionVia proximity switch
Symbol00991217, 00991218, 00991235, 00991237, 00991257, 00991258, 00992970, 00992971
VariantsAdvancing stroke adjustment, Weld spatter protection, Extended male piston rod thread, Piston rod with external hexagon, Low friction for balancer applications, Metal scraper, Module for reaching a sp
Mode of operation clamping unitretracting, advancing, static, Released through compressed air, Frictional clamping with spring force
Static holding force of clamping unit7500
Axial backlash of clamping unit1.8
Clamping unit release pressure0.3
Clamping unit release pressure3
Operating pressure0.005, 1
Operating pressure0.05, 10
Mode of operationDouble-acting
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ignition protection type for dustEx h IIIC T120°C Db
Explosion ambient temperature-20°C <= Ta <= +60°C
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress, 3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L, VDMA24364 zone III
Ambient temperature-40, 150
Impact energy in end positions1.65, 3.3
Cushioning length0, 45
Max. torque for protection against torsion3
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke6881
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke6881, 7363
Additional weight per piston rod extension of 10 mm63
Additional weight per piston rod thread extension of 10 mm41
Type of mountingWith female thread, With accessories
Pneumatic connectionG1/2
Note on materialsRoHS compliant
Material coverCoated die-cast aluminium
Material springSpring steel
Clamping unit housing materialAnodised wrought aluminium alloy
Material housing end-position lockingAnodised wrought aluminium alloy
Material piston sealFluoro rubber, HNBR, TPE-U(PU)
Material clamping jaws clamping unitBrass
Piston clamping unit materialPOM
Material pistonWrought aluminium alloy
Material piston rodHigh-alloy stainless steel, hard chrome-plated, High-alloy steel, High-alloy stainless steel
Material piston rod wiperFluoro rubber, HNBR, Packaging unit, TPE-U(PU)
Buffer seal materialFluoro rubber, TPE-U(PU)
Material of cushioning bossAluminium, POM
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Material nutGalvanised steel
Material rod wiperBrass, PTFE-reinforced, TPE-E
Material bearingBronze, Metal polymer compound, POM
Material collar screwsGalvanised steel
